Sim racing led matrix flag display

SimDash Brow Kit

Name: SimDash Brow Kit
Brand: ReaperWare
Price: 59.00 GBP
Availability: InStock

£59.00 GBP

Sale Sold out

Shipping calculated at checkout.

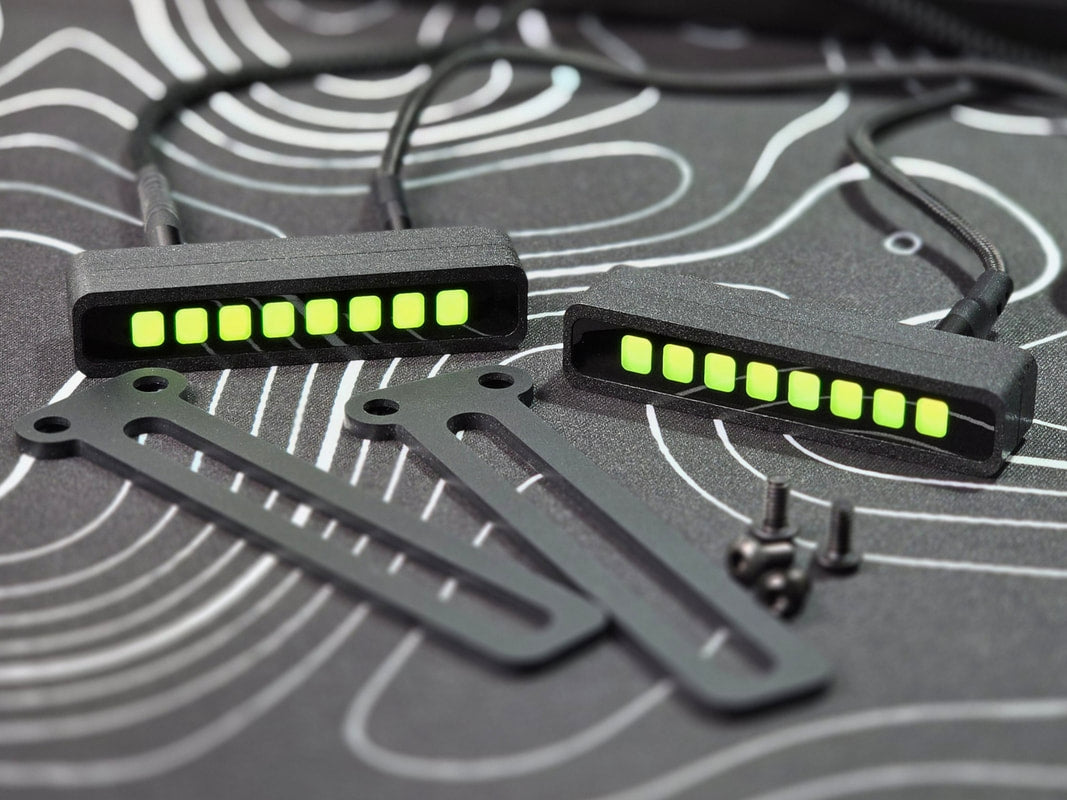

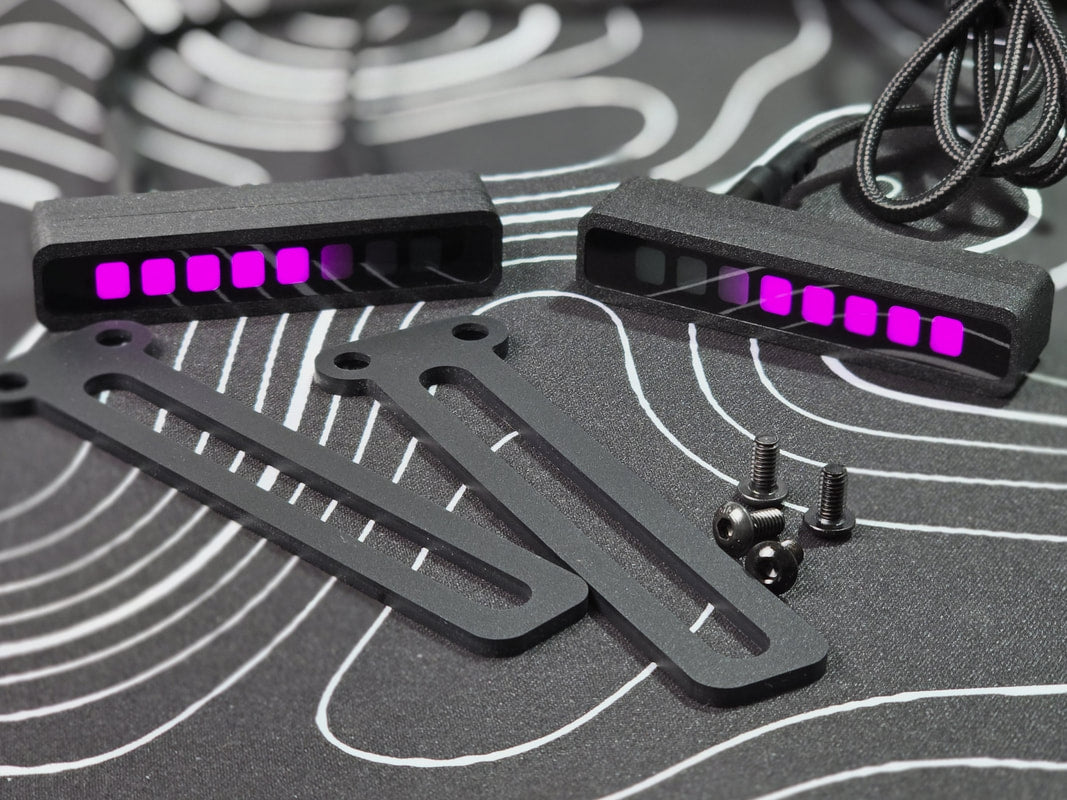

SimDash Brow Kit - Pair of 8x LED brow clusters, designed for sim racing!

Precision machine cut from cast acrylic Perspex, Tempered tinted glass pieces and Diffusion layers on LED's

The ReaperWare SimDash Brow kit features :

Total of 16 LEDs (2x 8).
Diffusion layers over LED's.

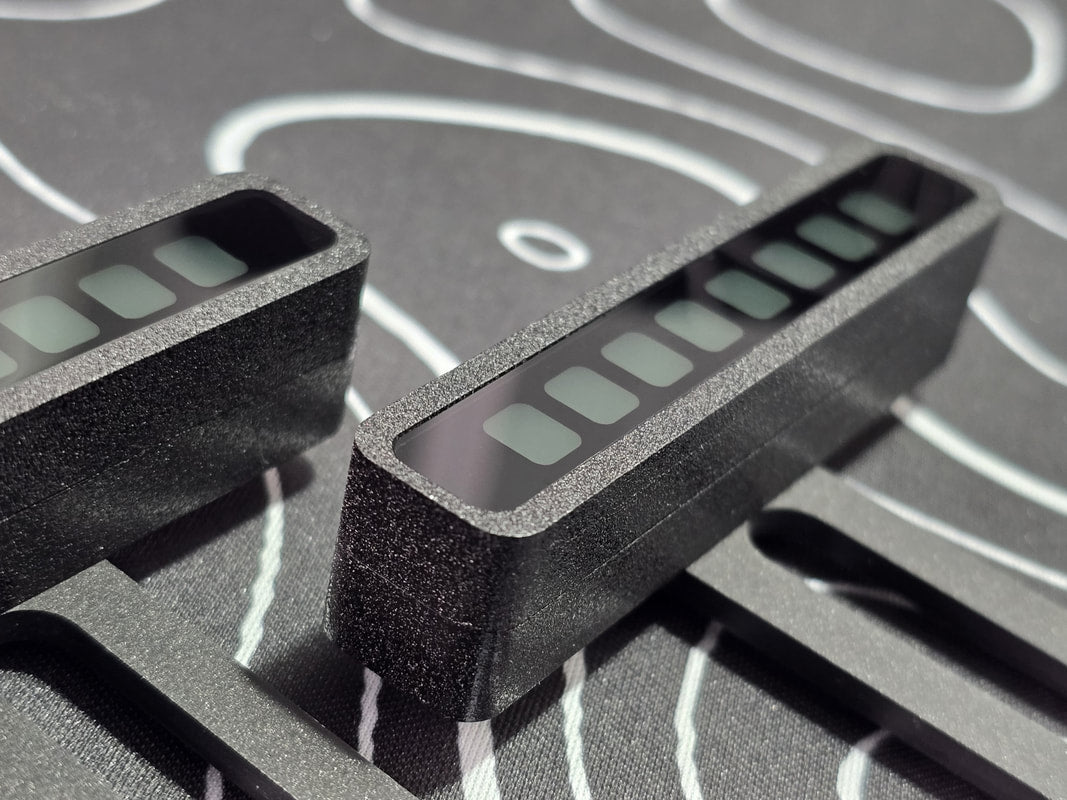

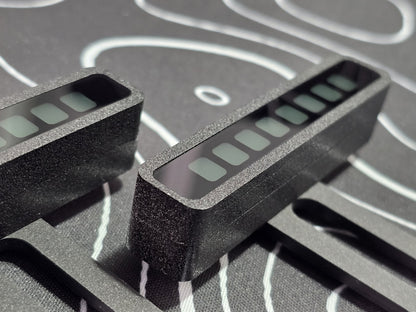

Tinted tempered glass front pieces.
No external control box, all electronics built into both brows to minimise complexity and cable clutter.
100% in house designed custom electronics and PCB.
All cables included.
Mounts also included.

Fully SimHub compatible, get up and running in two minutes by downloading our SimDash Brow Kit profile.

2m USB cable (Type-A to Type-C) and 1m USB cable (Type-C to Type-C) included.

Mount is also included.

Designed, Manufactured and Hand assembled in the UK by ReaperWare.

Detailed Specifications

Any USB Type-A port capable of supplying up to 2.5 watts of power.
A 2-meter USB Type-A to Type-C cable is included. A second 1-meter cable is included to connect both brows.
Windows 10/11 and the latest version of SimHub.
SimHub Device Definition Profile provided for quick and effortless setup.
Multiple LED modules can be installed.

Dimensions : 73x15, 18mm thick.
Weight : 45 Grams

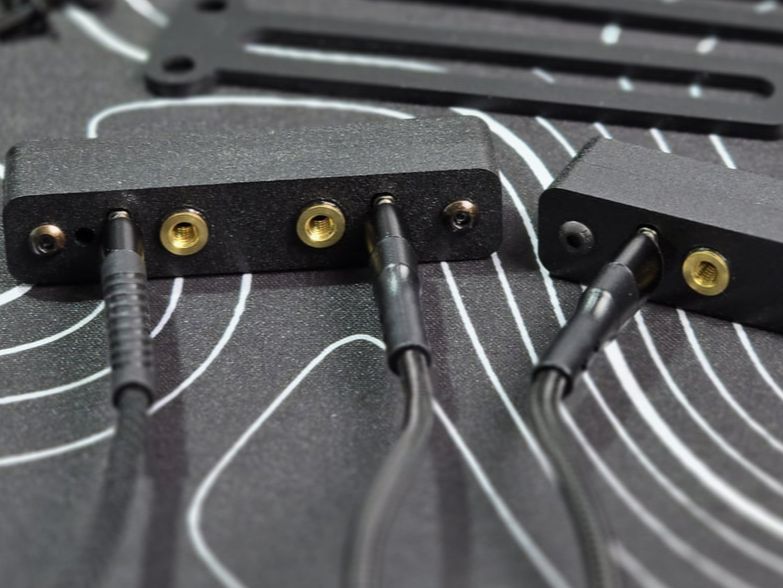

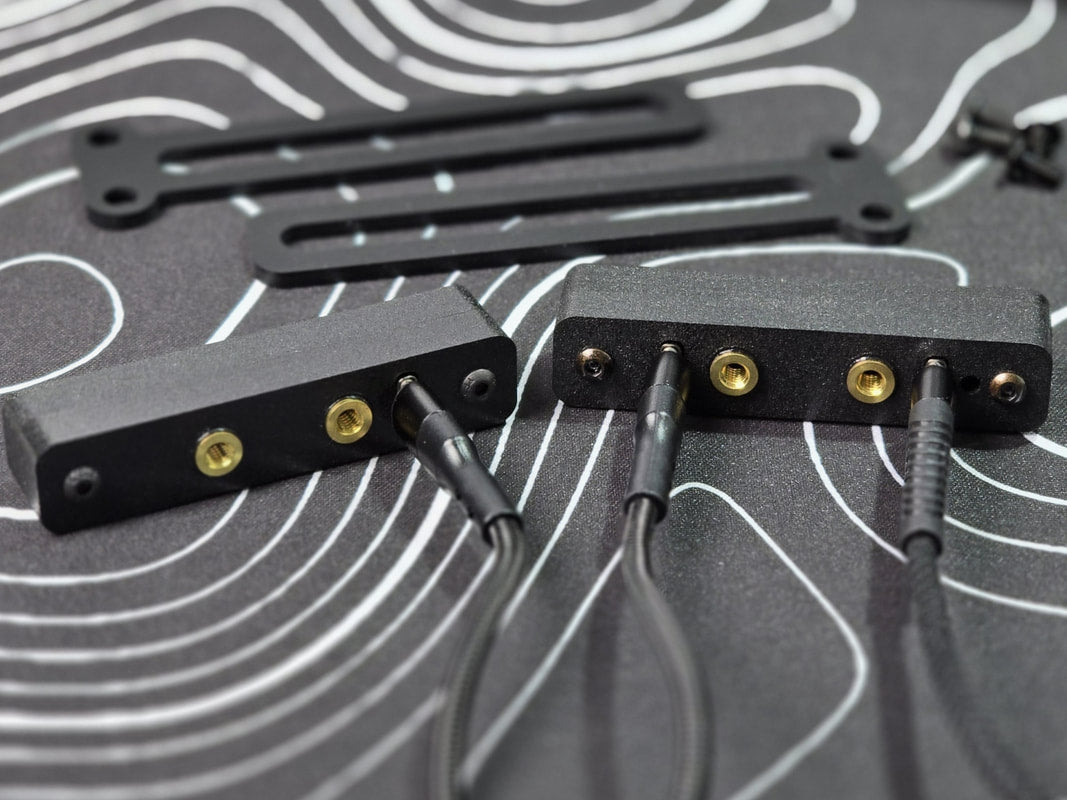

Mounting : M4 Brass inserts on rear, spaced 50mm apart, maximum insert depth for mounting screws should be no more than 10mm. (Mounting solution included).

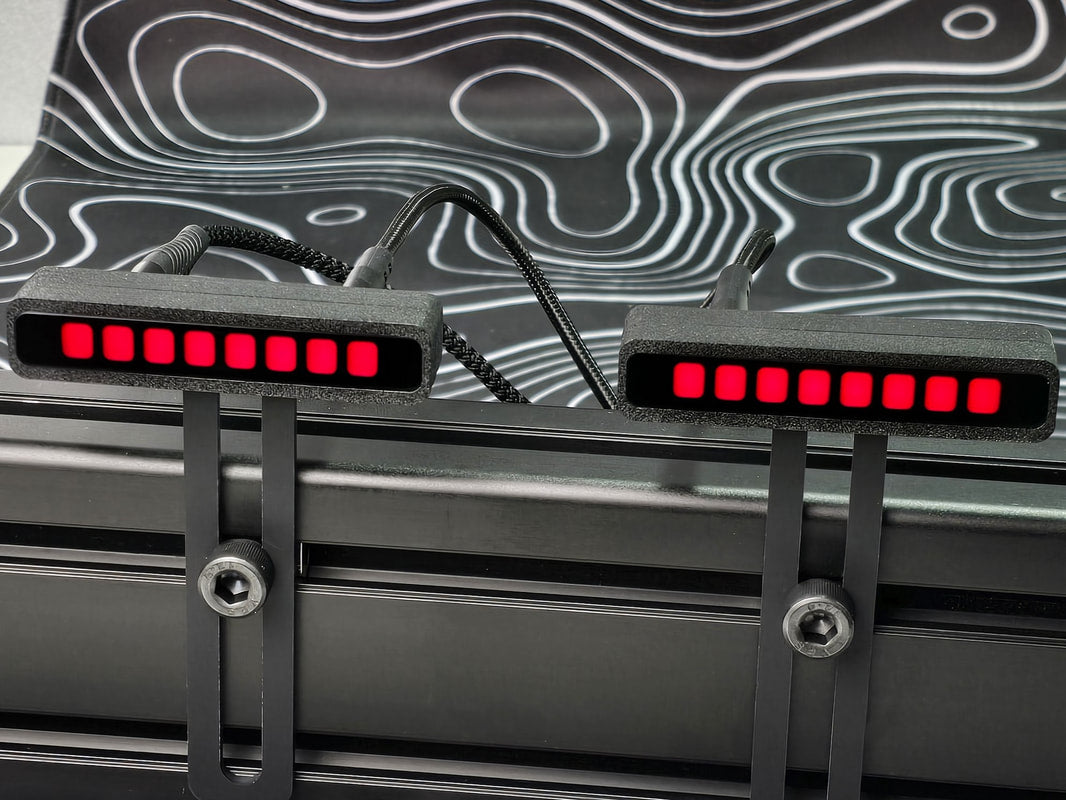

Mounting available for aluminium profile or ReaperWare Button Boxes.

ReaperWare LED modules and Brow Kits are typically always pre-built and ready to dispatch within 1 working day.
Delivery within mainland UK is usually no more than 2 working days.
International delivery time varies depending on region.

SIMPLE AND EASY
Just two cables are required, both are included!

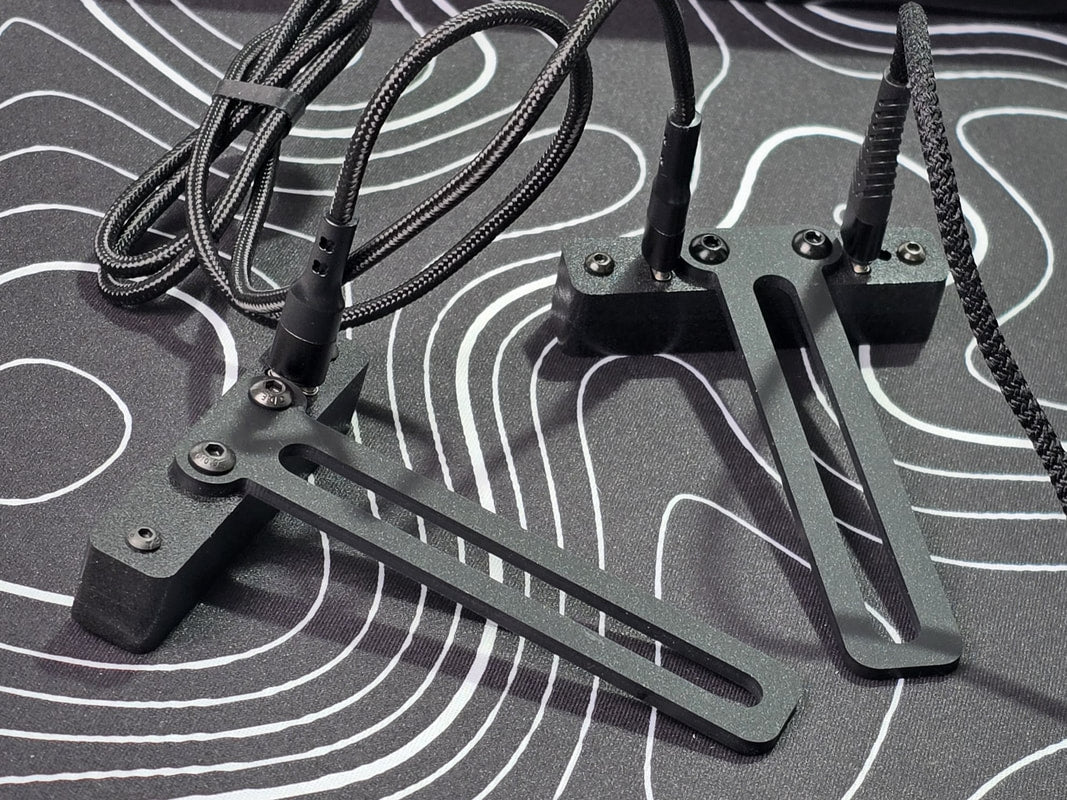

Mounting brackets and screws are also included!

Slimline and compact, Easy to mount anywhere.
SLEEK DESIGN
The SimDash Brow Kit connects to your PC with a single USB cable.

Connect the left side Brow to your PC, the right side brow then connects to the left brow.

Unlike other manufacturers, there is no external control box. All of the electronics are built into both brows, minimising complexity and cable clutter!
EFFORTLESS
Only SimHub is required to run! Get setup and running in just a couple of minutes...Download and run the SimHub Device Definition Profile from our downloads page and done!

This will add the SimDash LED Module do your SimHub 'Devices' list and will already include a default LED profile.This process allows you to add multiple LED devices and modify each LED profile assigned to each device easily and independently from one another.You can add and run as many of these SimDash Brows or LED Modules as you like.
