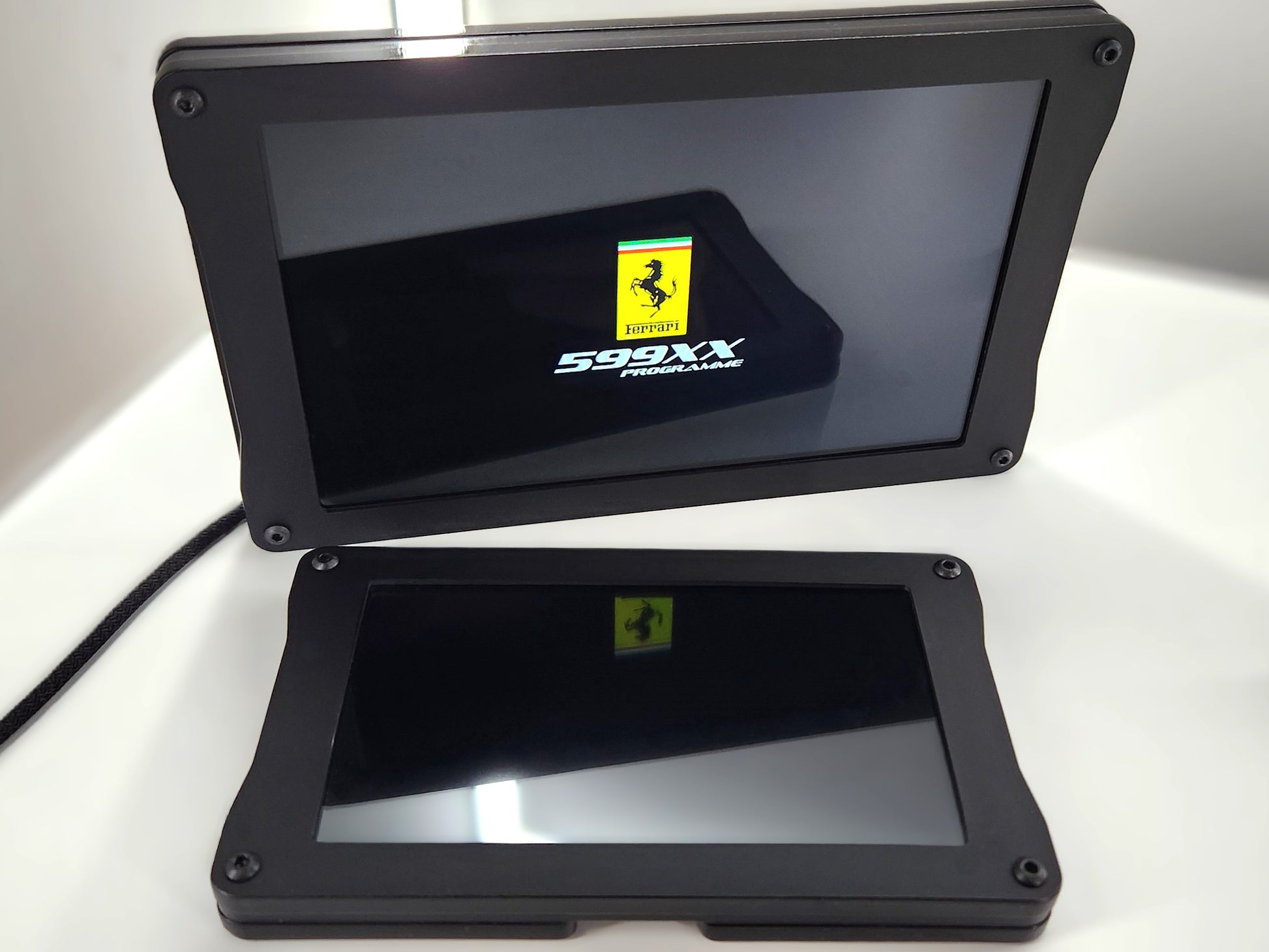

• ReaperWare SimDash 7 USB sim racing display monitor with a 6.8 inch 800x480 IPS touch screen panel in a slim machine-cut acrylic enclosure
  • ReaperWare SimDash 7 USB sim racing display monitor with a VoCore display
  • ReaperWare 6.8" display for sim racing - fully SimHub compatible
1 9

Sim racing led matrix flag display

SimDash 7 USB Display

SimDash 7 USB Display

£119.00 GBP
£119.00 GBP
Sale Sold out
Shipping calculated at checkout.

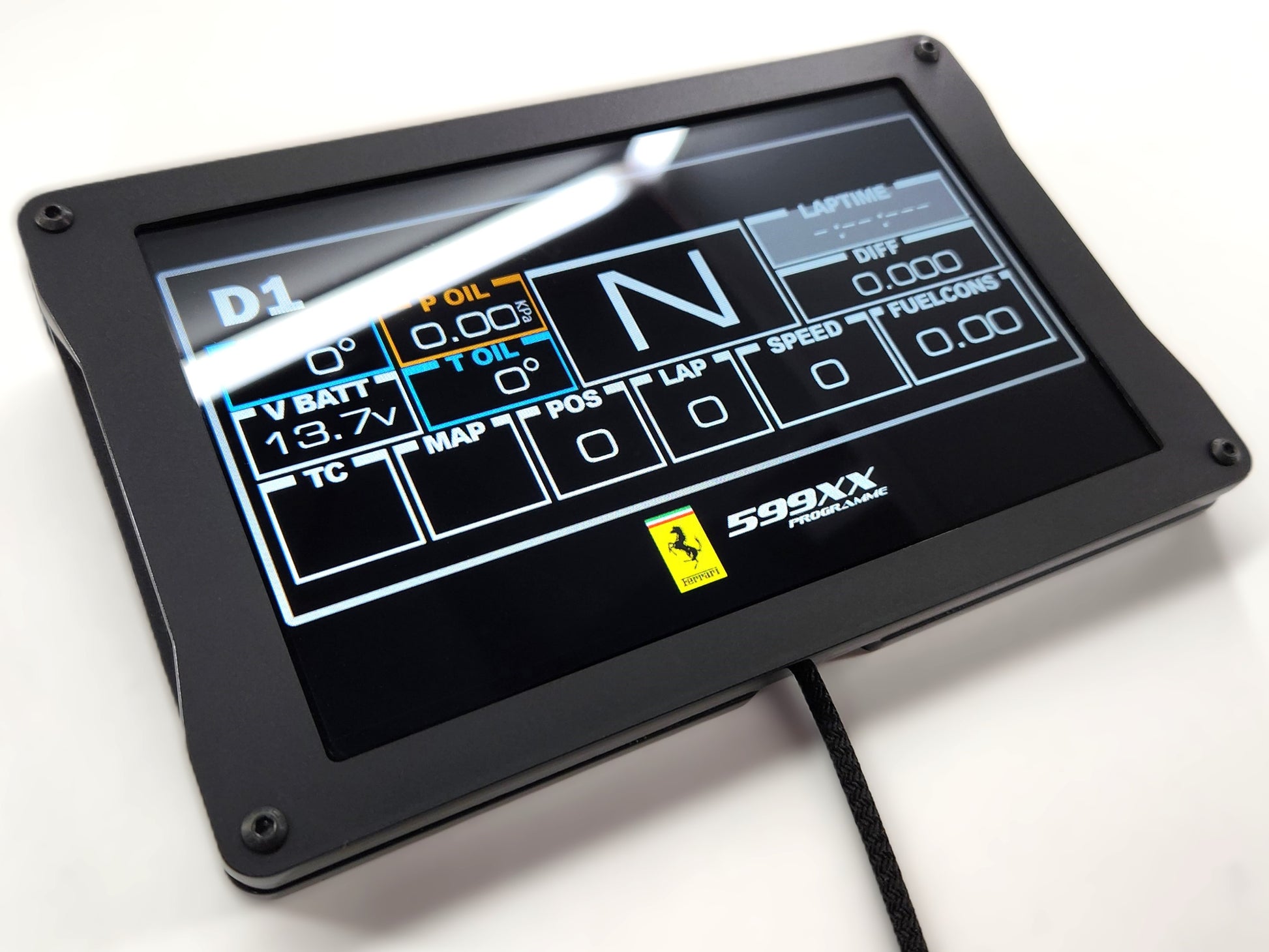

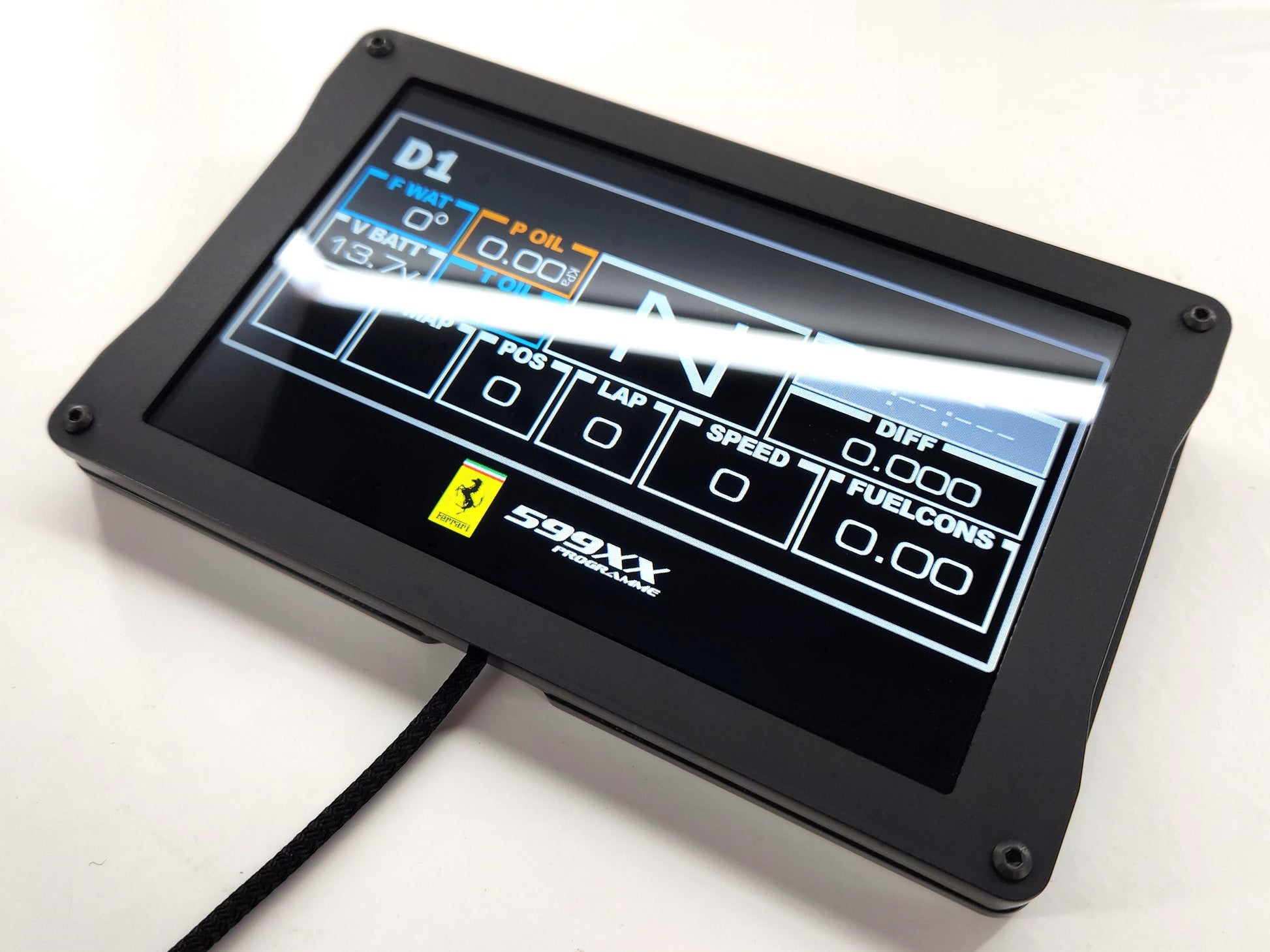

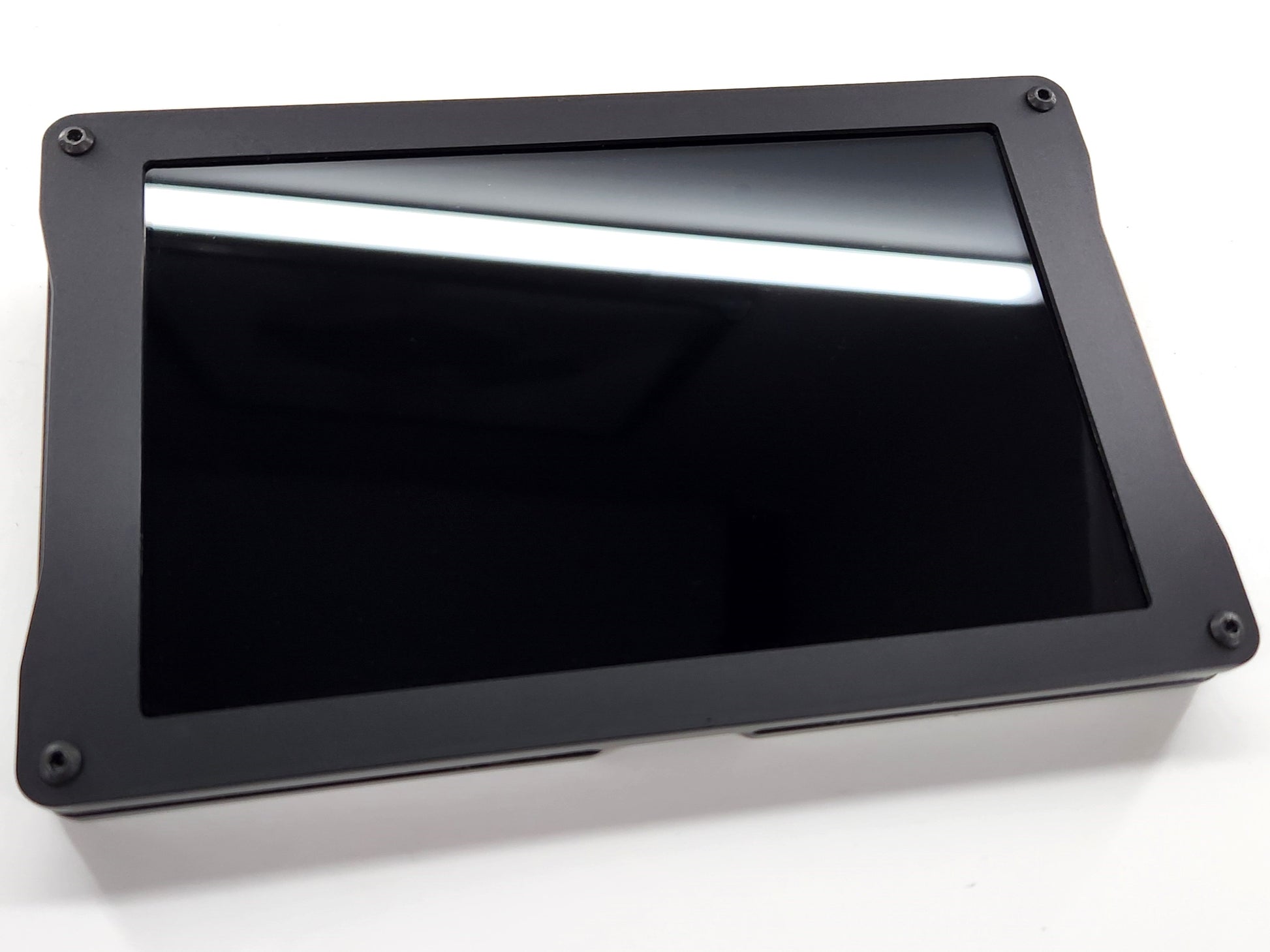

The ReaperWare SimDash 7 is a 6.8" USB display crafted for sim racing.

The enclosure is precision machine cut from cast acrylic Perspex, featuring a beautiful 6.8" 800x480 IPS touch screen display.

Features:

  • 6.8" 800x480 resolution 60Hz IPS touch screen.
  • Measuring only 112x183mm and just 15mm thick.

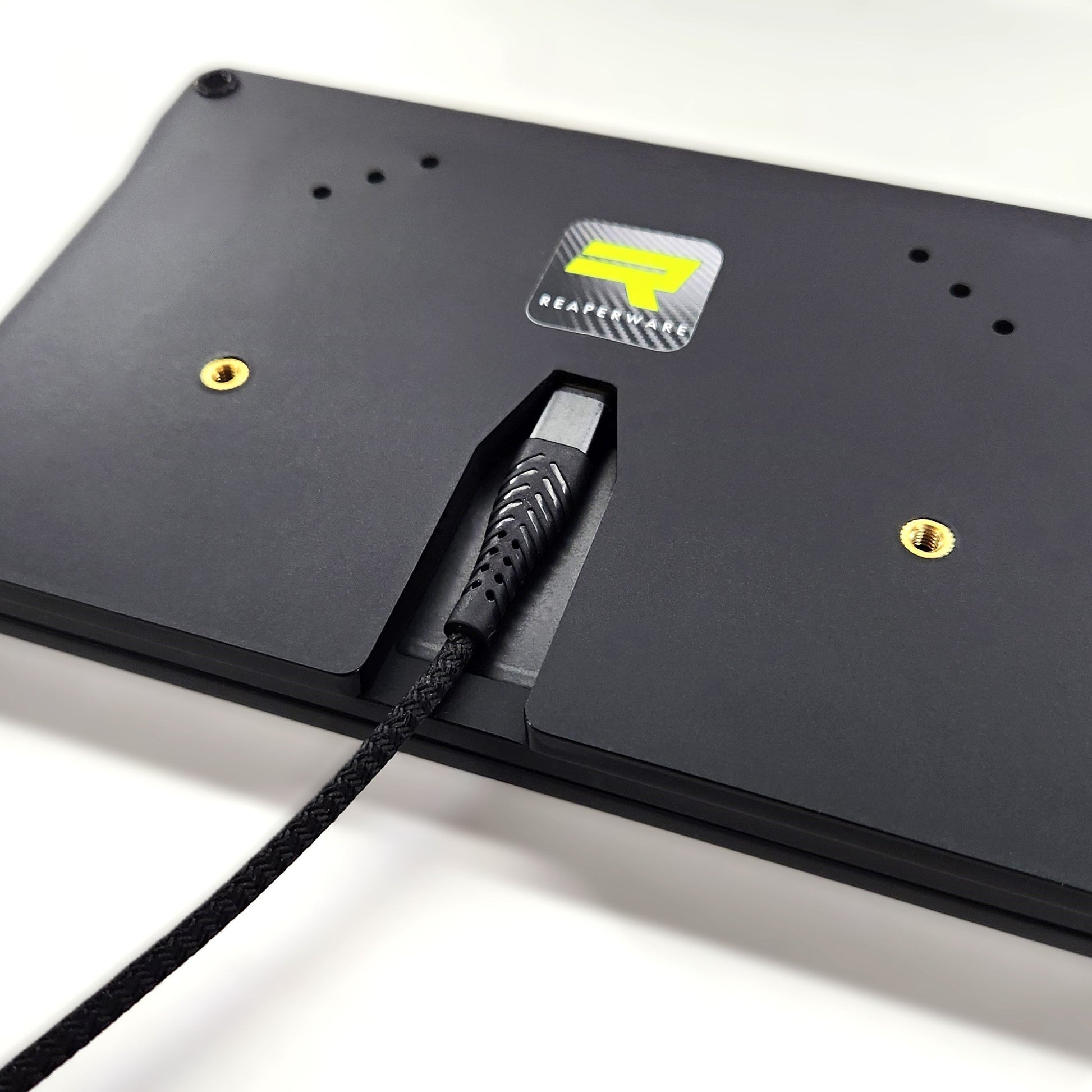

  • Powered and operated using a single USB cable. (Premium braided USB Type-C cable included).
  • USB cable is removable.
  • Range of mounting options available.
  • 100% compatible with SimHub.

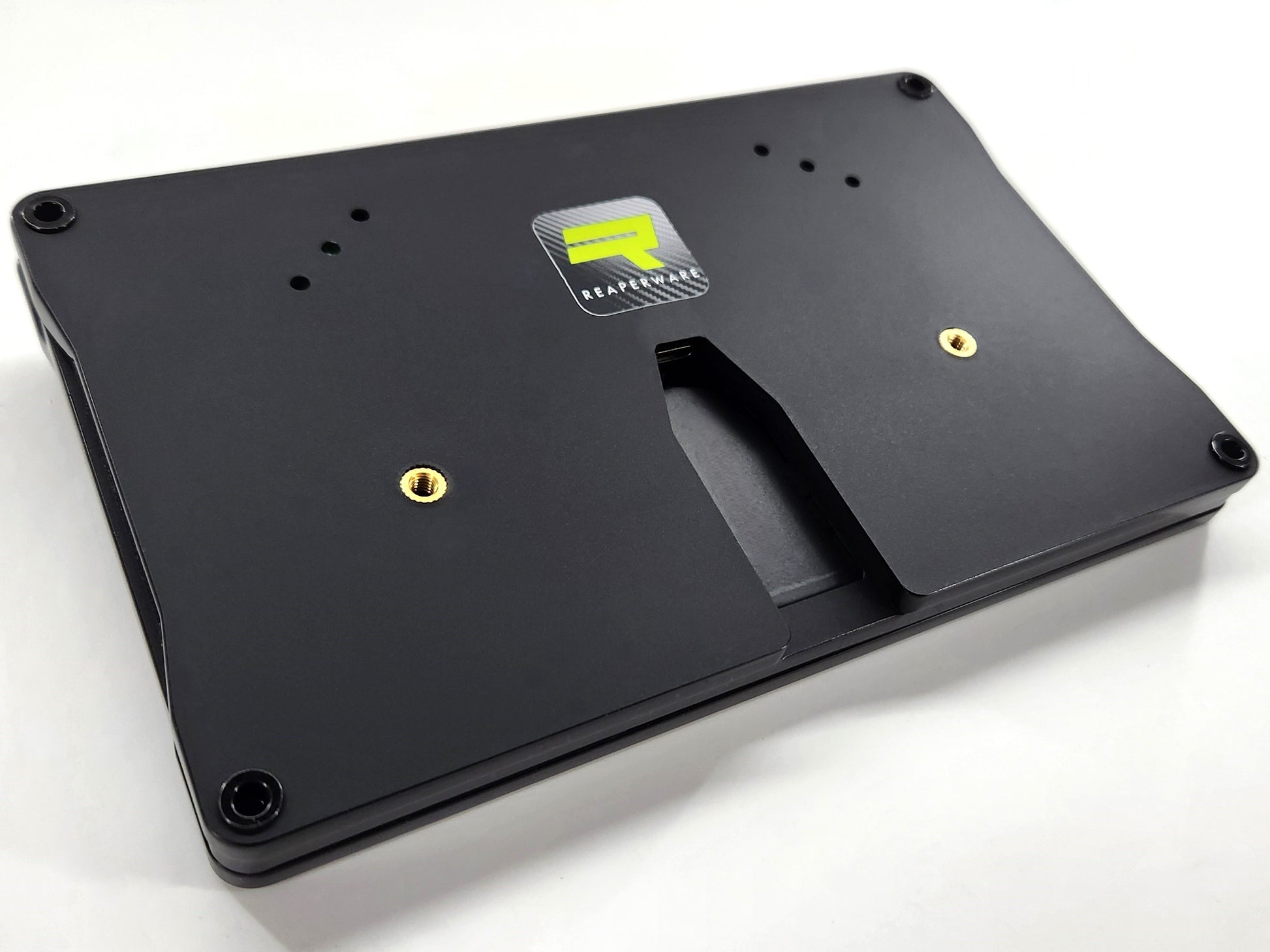

  • Pair of M4 threaded mounting points on rear spaced 100mm apart. (Maximum threaded insert depth should be no more than 7mm)

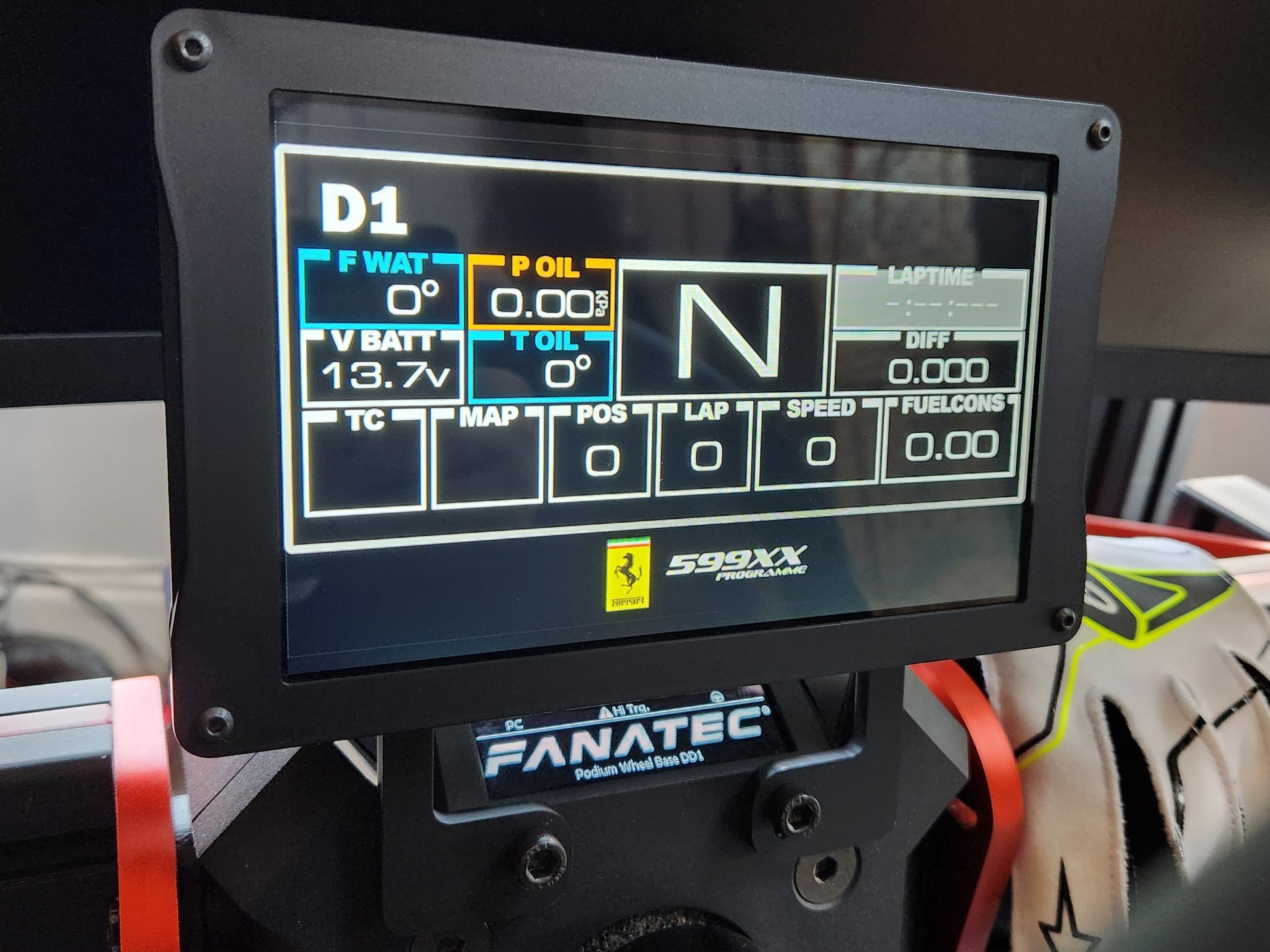

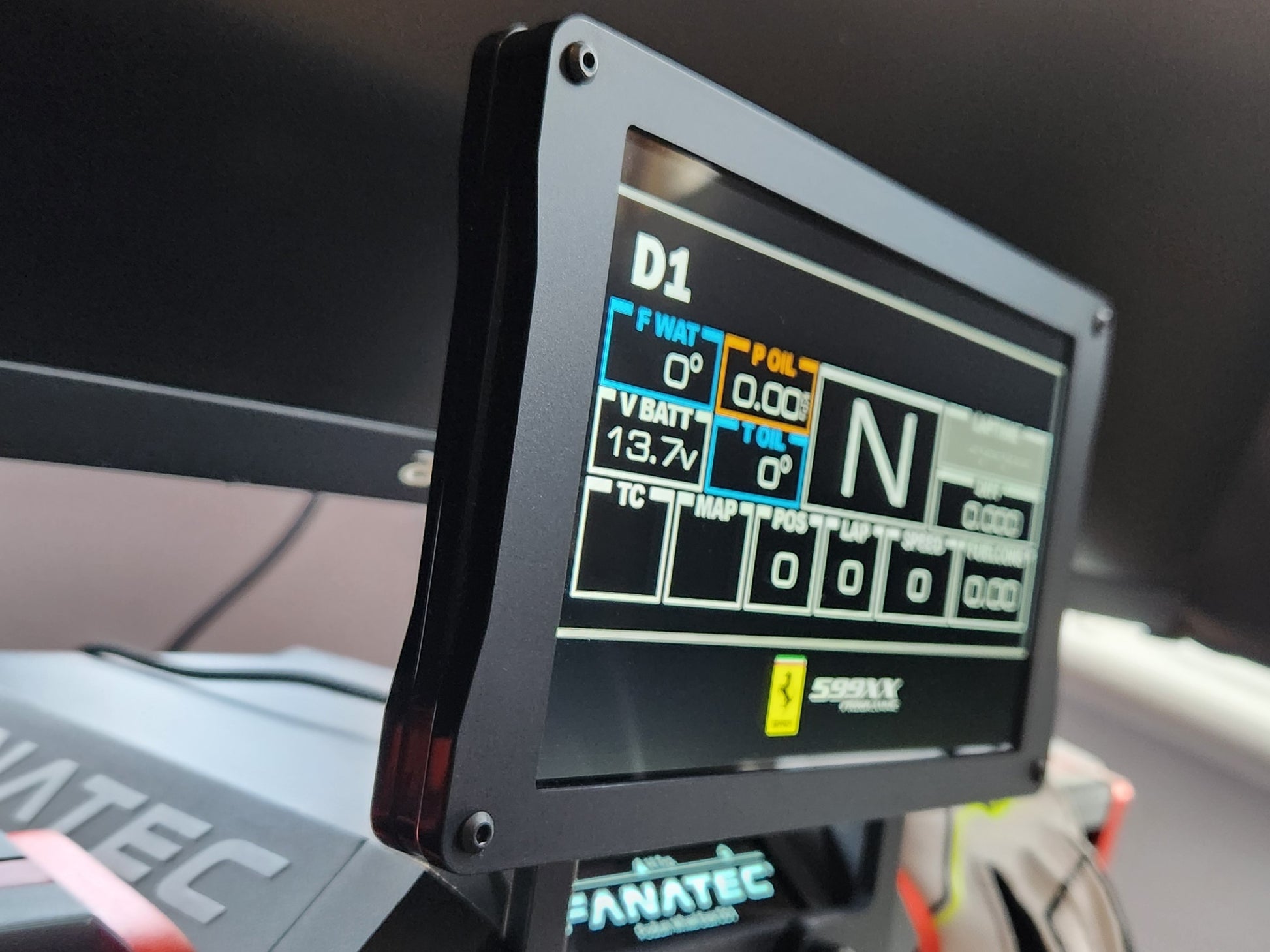

A range of mounting options are available that support Fanatec, Simucube, Simagic and Moza R9 V2 wheel bases.

2m USB Type-C cable included.

Designed, Manufactured and Hand assembled in the UK by ReaperWare.

View full details

Detailed Specifications

VoCore Display Specifications

  • Includes VoCore 6.8" display.
  • 148.1mm x 88.9mm display size.
  • 24bit & 16bit colour modes
  • 800x480 resolution.
  • 60Hz refresh rate.
  • Capacitive, two point touch.
  • Power Draw : 2.4 watts (100% brightness).
  • Peak brightness 400LM

Construction

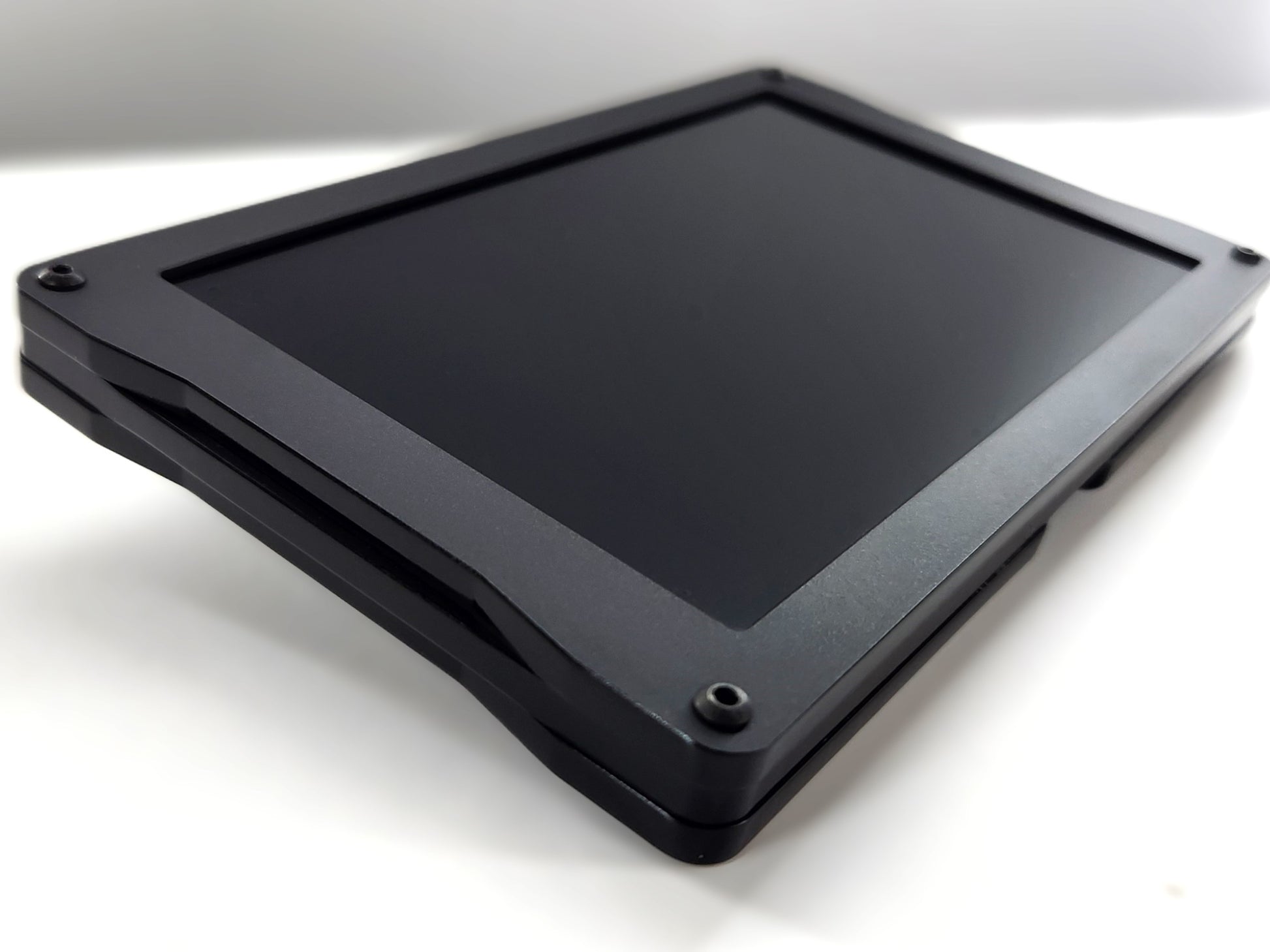

  • Enclosure is 100% precision machine cut from cast acrylic Perspex.
  • M4 Brass threaded inserts on rear for mounting. Spaced 100mm apart. Maximum screw insert depth should not exceed 8mm.

Connectivity

  • Any USB Type-A port capable of supplying up to 2.5 watts of power.
  • A 2-meter USB Type-A to Type-C cable is included.
  • Windows 10/11 and the latest version of SimHub.
  • Multiple VoCore displays can be run simultaneously.

Measurements

  • Dimensions : 112x183mm and just 15mm thick.
  • Weight : 350 Grams
  • Mounting : M4 Brass inserts on rear, spaced 100mm apart, maximum insert depth for mounting screws should be no more than 8mm. (Mounting solutions are available).

Build/Shipping Time

  • ReaperWare SimDash units are typically built and ready to dispatch within 2 working day.
  • Delivery within mainland UK is usually no more than 2 working days.
  • International delivery time varies depending on region.

  • SIMPLE AND EASY

    Just one USB connection is required.

    Cable is included.

    Mounting brackets and screws are also included!

  • SLEEK DESIGN

    Slimline and compact, Easy to mount anywhere.

    Edge polished to perfection.

  • Fully compatible with SimHub - and hundreds of third party dashboards. Perfect for Sim racing

    EFFORTLESS

    Only SimHub is required to run! Get setup and running in just a couple of minutes...


    Just add a VoCore device in SimHub and apply a dashboard!
