premium sim racing button box with 6.8" vocore display

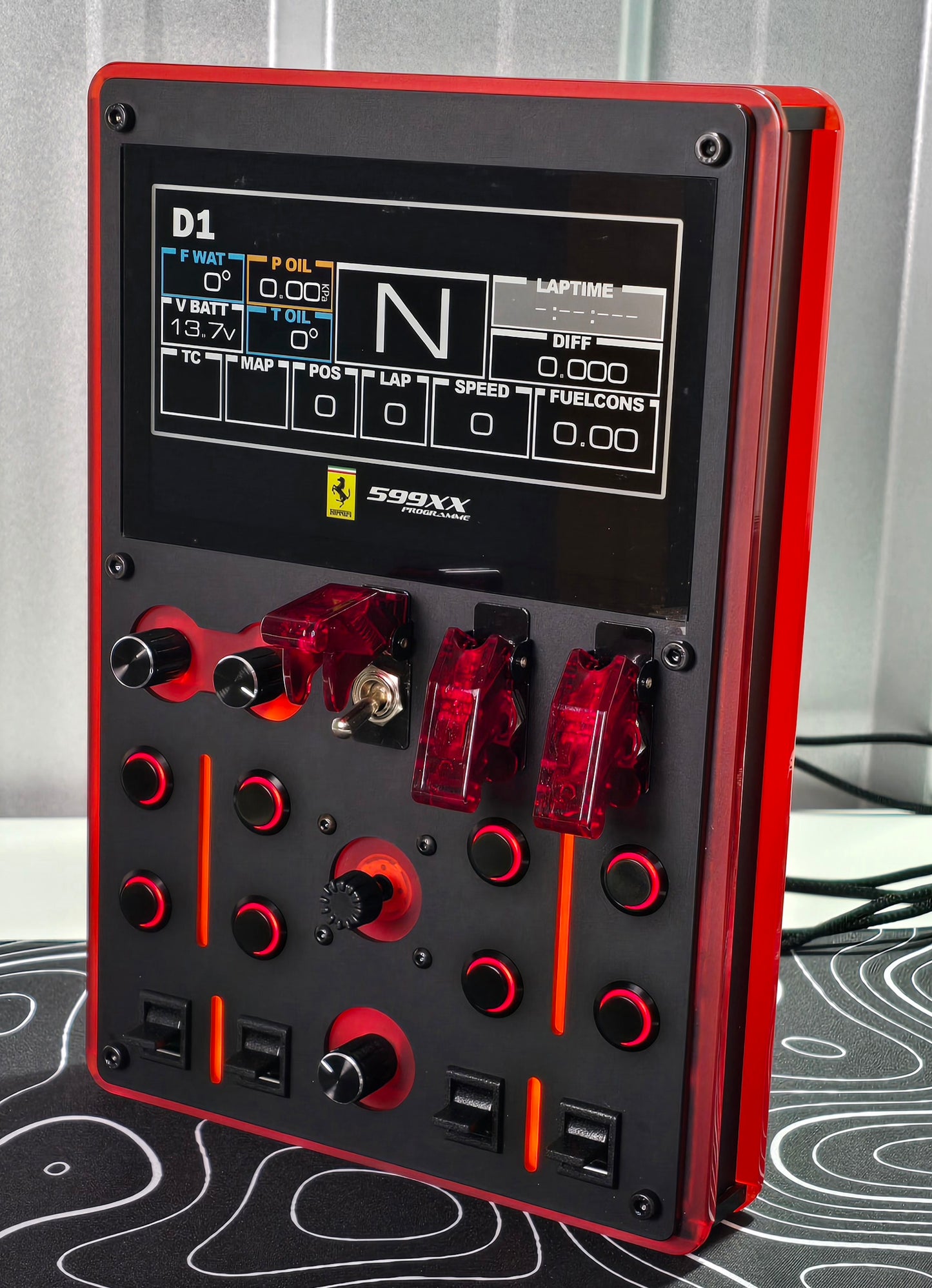

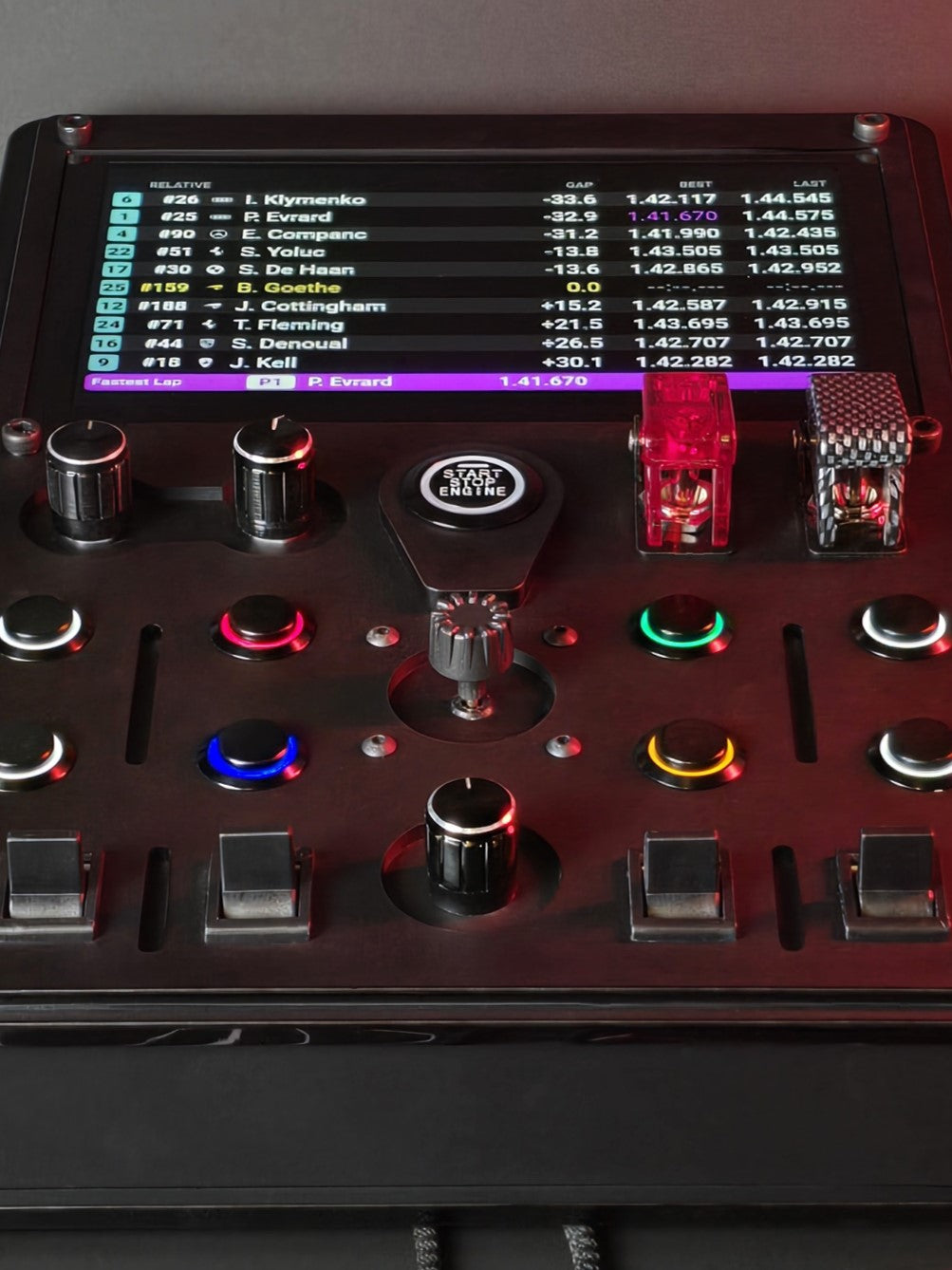

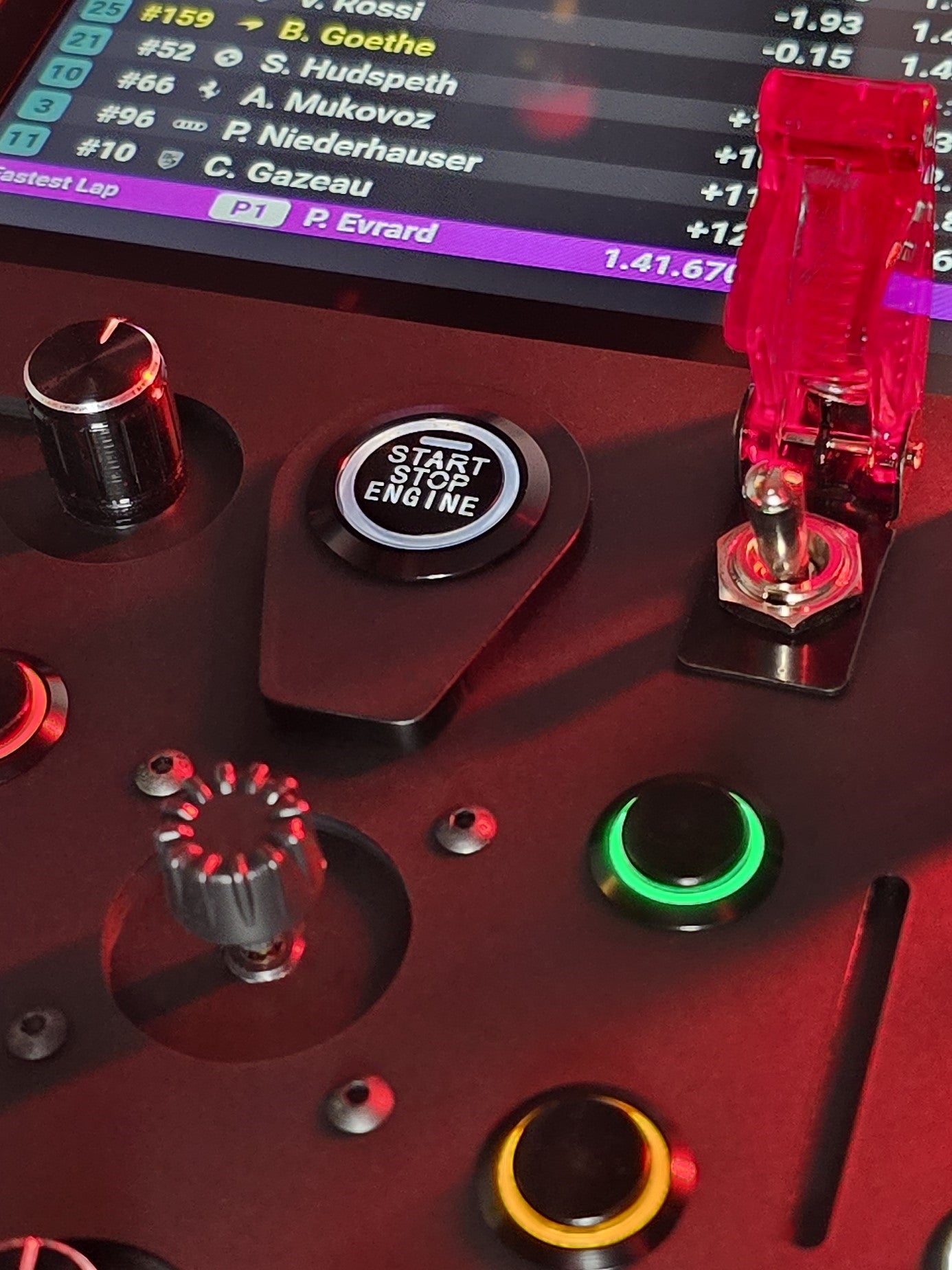

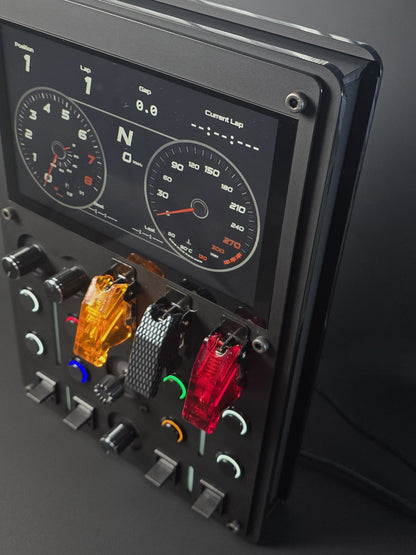

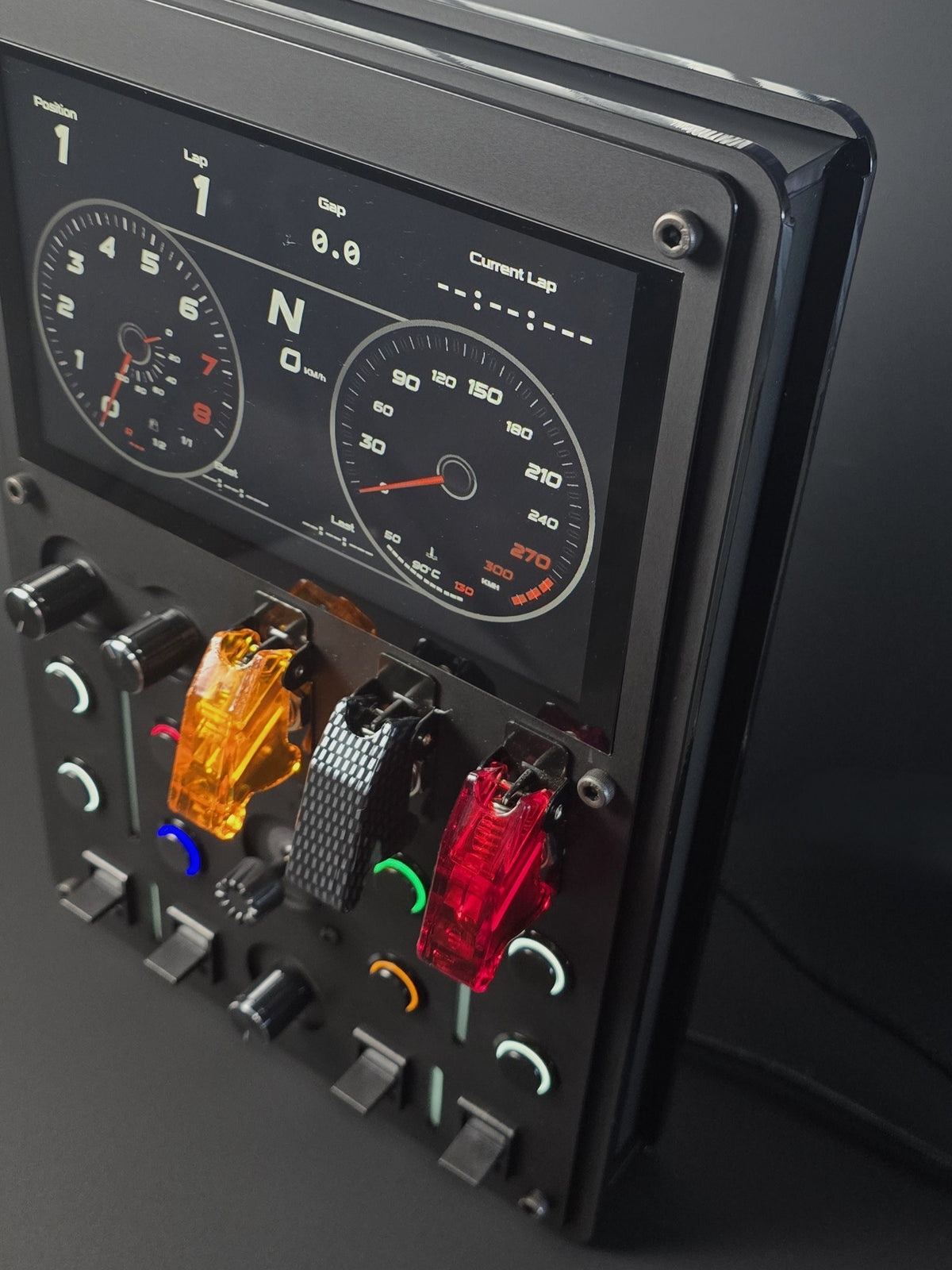

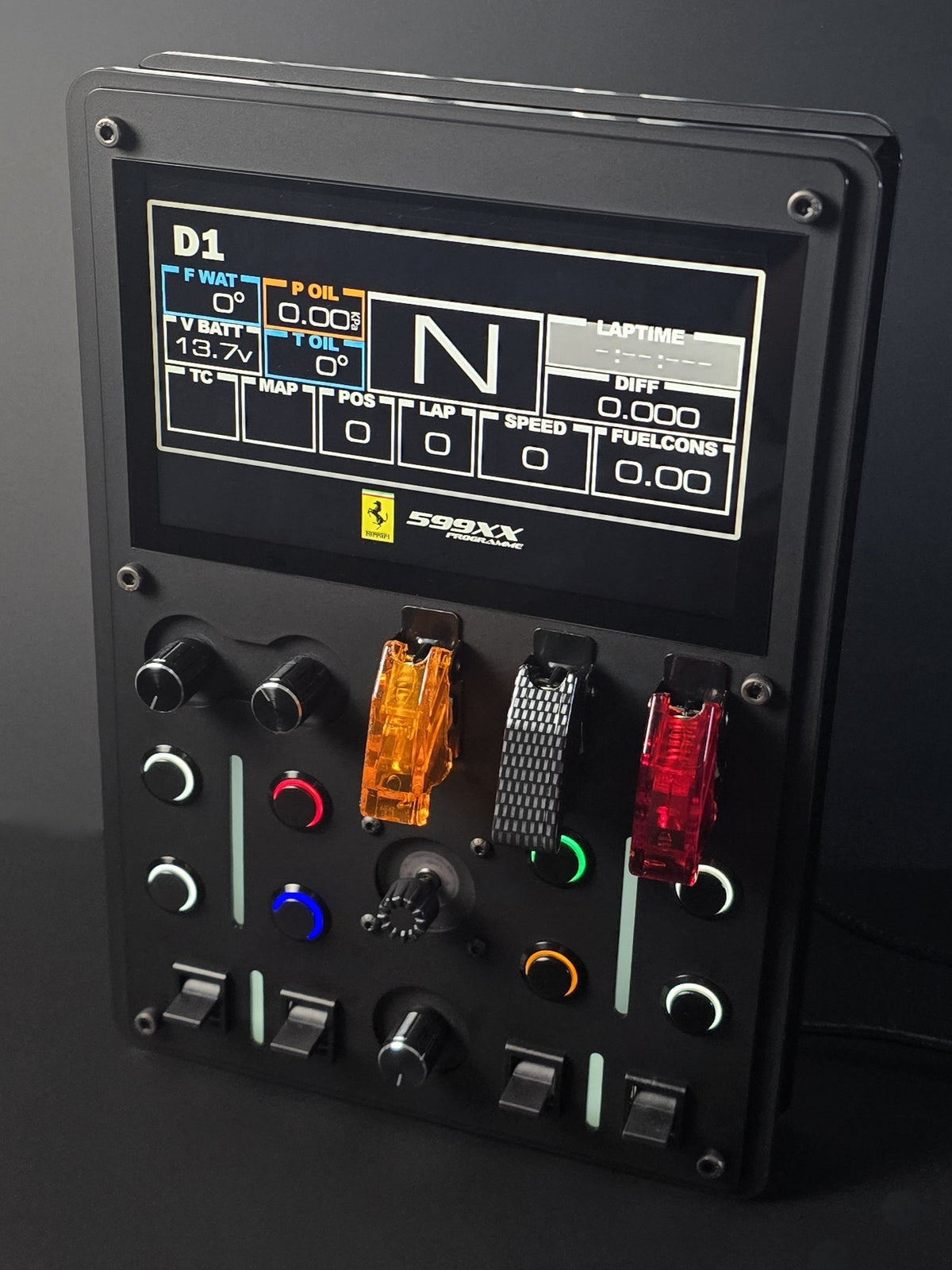

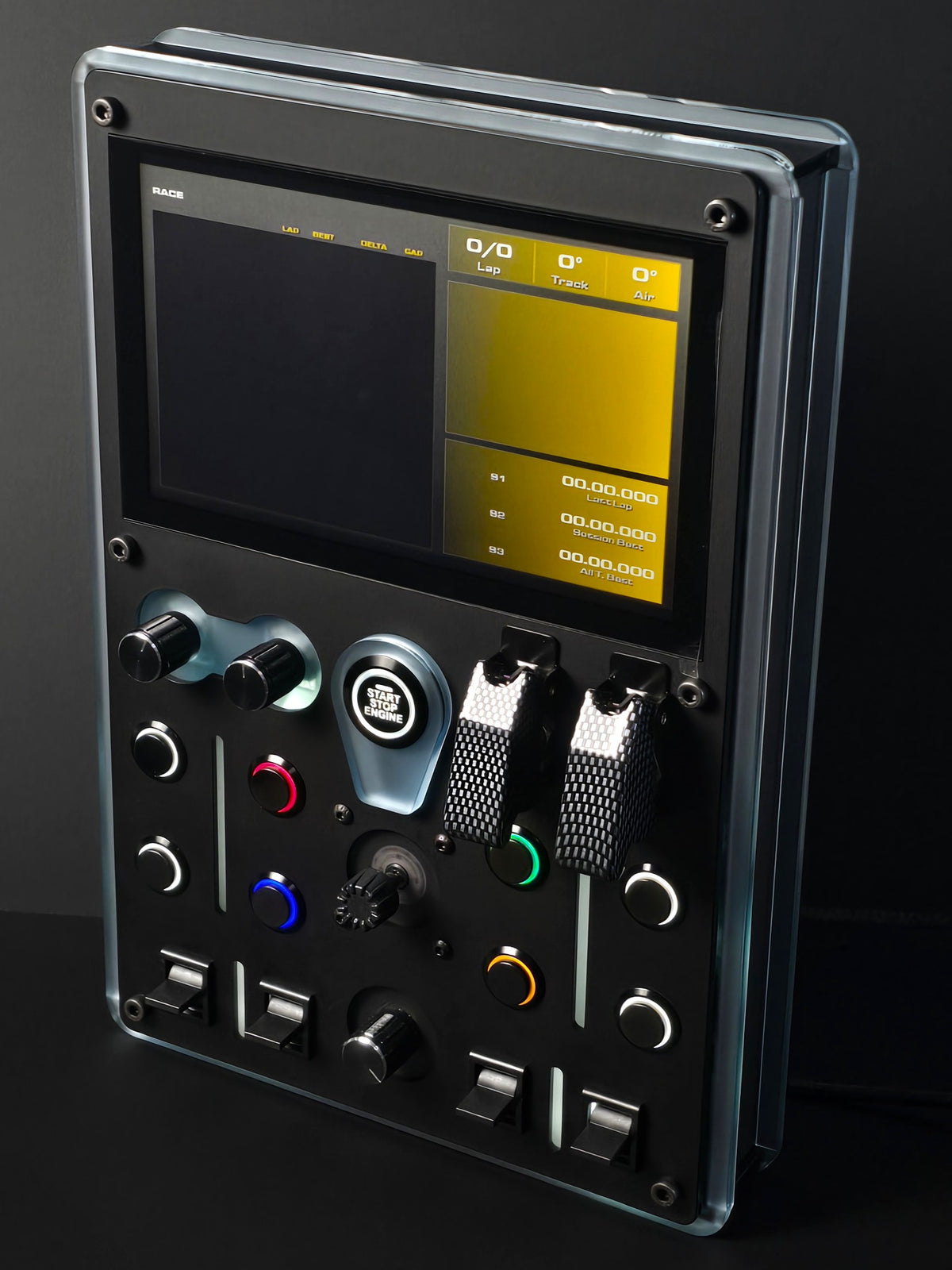

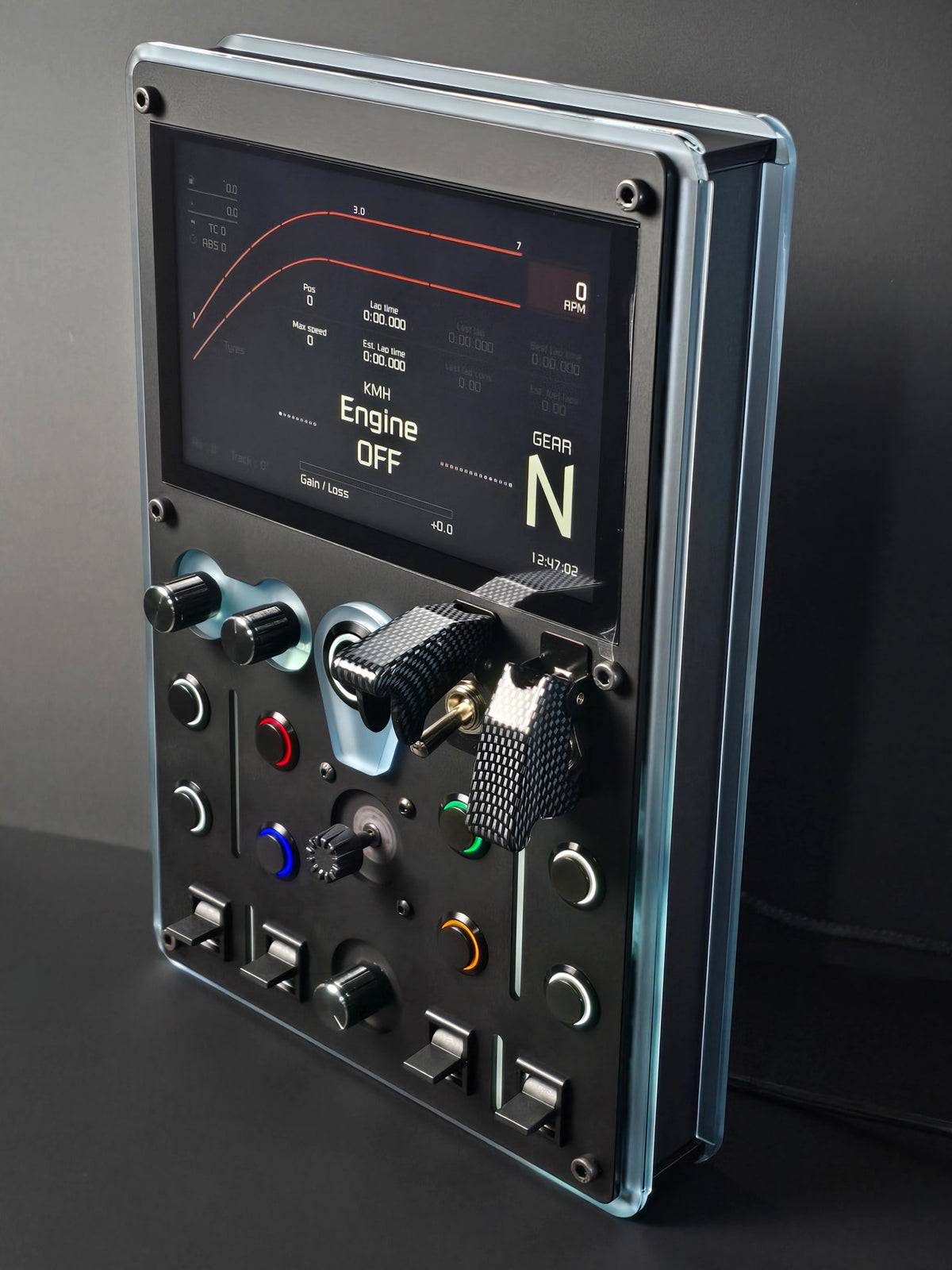

RaceConsole Podium

RaceConsole Podium

£224.00 GBP
£224.00 GBP
Sale Sold out
Shipping calculated at checkout.

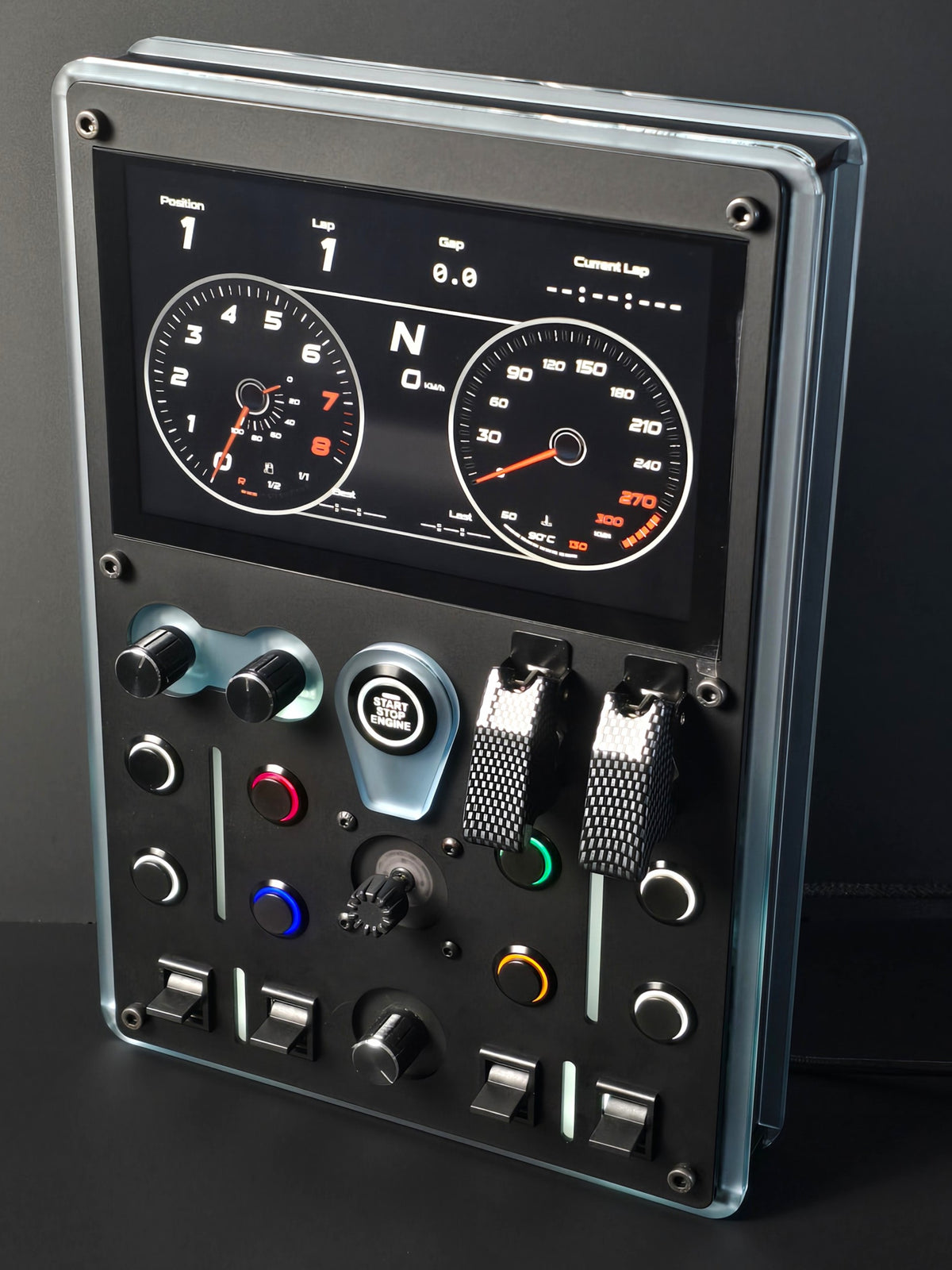

Sim racing button box with 6.8" VoCore display!

Add additional functionality and immersion to your setup with the ReaperWare RaceConsole Podium! A premium multi-function USB sim racing button box specifically designed for Sim Racing.

Featuring a total of 31 unique inputs and a VoCore 6.8" display.

The perfect addition to any sim racing rig.

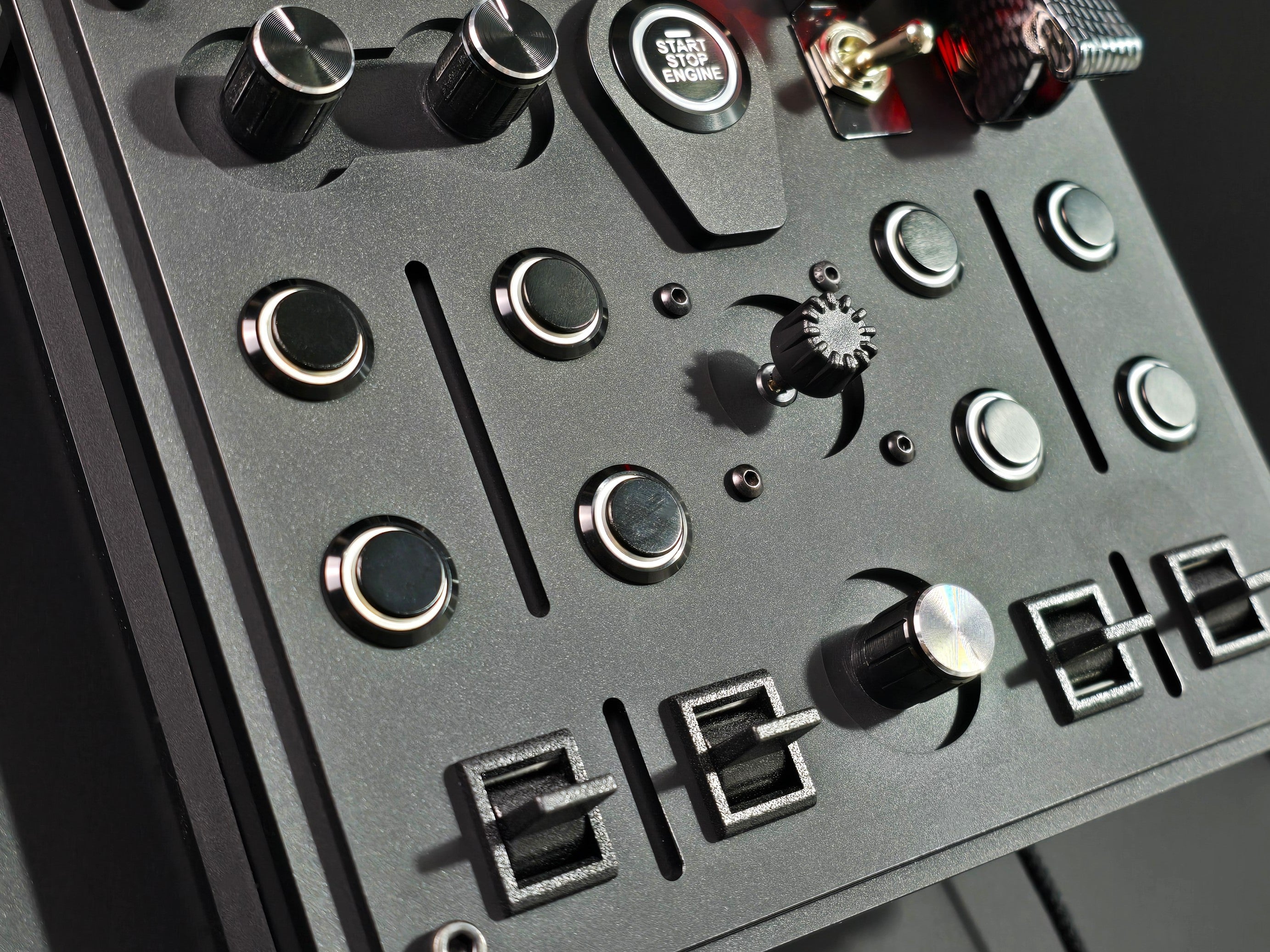

Features:

  • 6.8" VoCore 60Hz touch screen IPS display.
  • 100% compatible with SimHub.
  • 6-Way MFD joystick (Up, Down, left, Right, Twist left & Twist right).

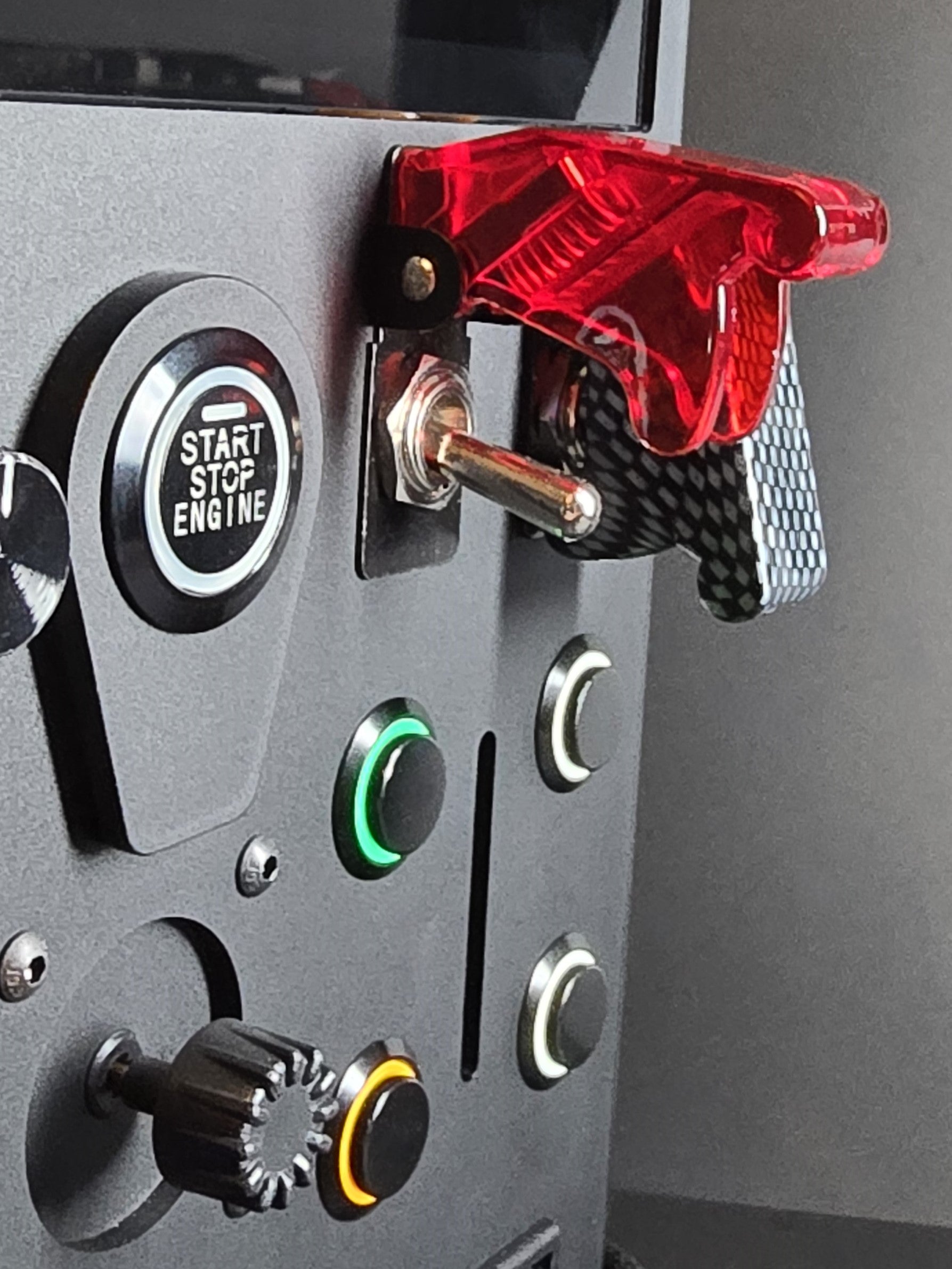

  • Pair of heavy duty momentary toggle switches.
  • 4x two-way (up and down) momentary toggle flip switches.

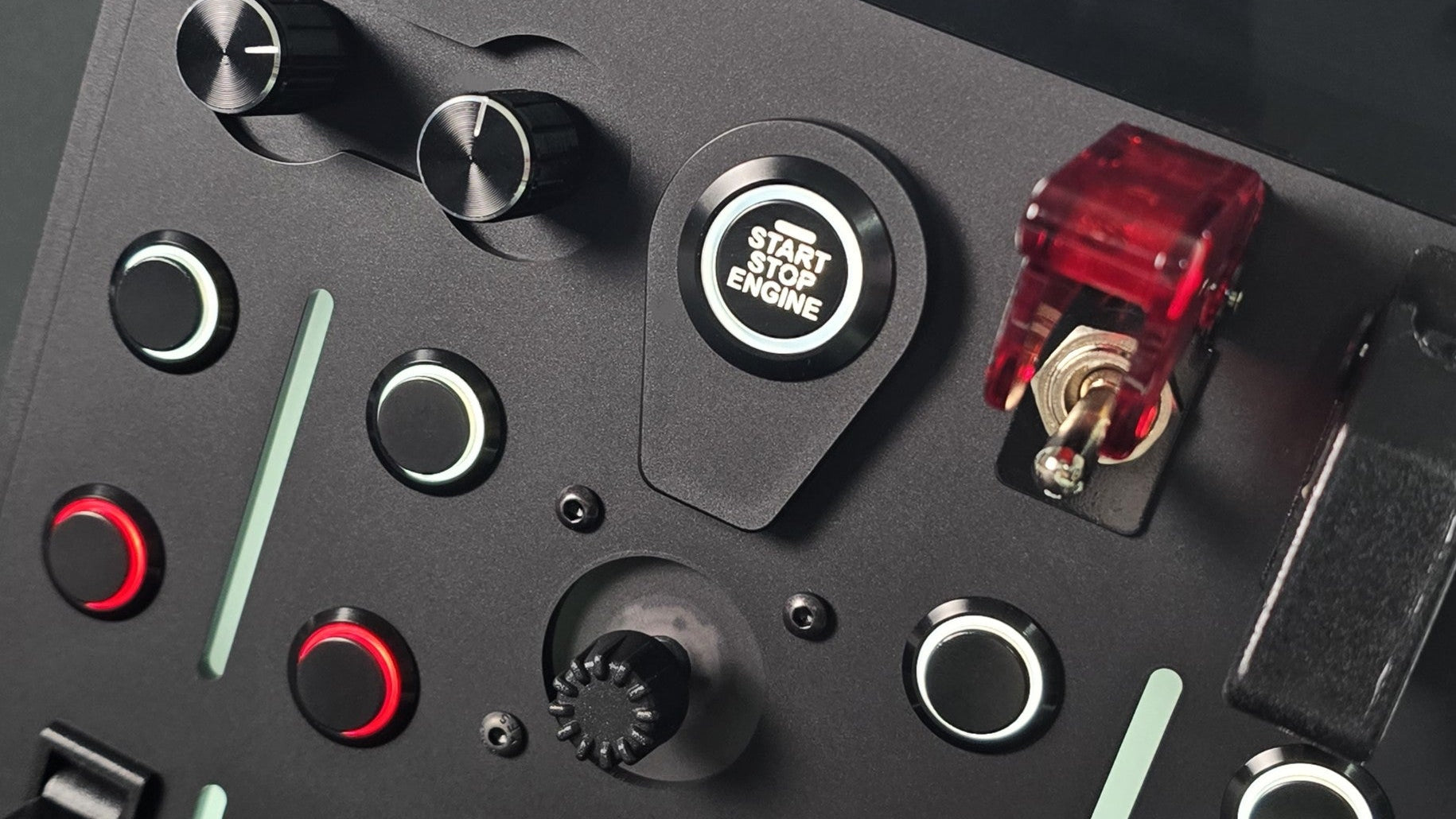

  • Dedicated 22mm illuminated Engine Start/Stop button.
  • 8x 16mm momentary LED backlit metal push buttons.
  • Dual rotary encoders with push button function.
  • PWM dial to adjust LED brightness.
  • Machine cut cast acrylic enclosure, edge polished to perfection.
  • VESA 100mm M4 mounting points on rear.
  • Integrated USB hub on rear and additional mounting points for iFlag, LED brows and button box modules.

Designed, Manufactured and Hand assembled in the UK by ReaperWare.



View full details

Detailed Specifications

VoCore Display Specifications

  • Includes VoCore 6.8" display pre-fitted.
  • 148.1mm x 88.9mm display size.
  • 24bit & 16bit colour modes
  • 800x480 resolution.
  • 60Hz refresh rate.
  • Capacitive, two point touch.
  • Power Draw : 2.4 watts (100% brightness).
  • Peak brightness 400LM



Inputs

  • Touch function on VoCore display.
  • Tactile 6-Way MFD joystick (Up, Down, left, Right, Twist left & Twist right).
  • Pair of heavy duty momentary toggle switches.
  • 4x two-way (up and down) momentary toggle flip switches.
  • Dedicated 22mm illuminated Engine Start/Stop button.
  • 8x 16mm momentary LED backlit metal push buttons.
  • Dual rotary encoders with push button function.
  • PWM dial to adjust LED brightness.

Construction

  • Enclosure is 100% precision machine cut from cast acrylic Perspex and edge polished to perfection. No wonky 3D prints here!
  • Finger print resistant frosted matte finish.
  • 8mm thick at the front, the rest of the unit is 5mm thick.
  • In-house custom designed electronics and PCB's ensuring long term reliability and serviceability.
  • M4 Brass threaded inserts on rear for mounting.

Connectivity

  • 2x USB Type-A ports capable of supplying up to 2.5 watts of power.
  • 2-meter USB Type-A to Type-C cable is included.
  • VoCore screen requires Windows 10/11 and the latest version of SimHub.
  • Buttons are plug and play in Windows. No addiitonal drivers or software required. Inputs just need to be mapped in game.
  • Integrated USB Hub. Type-A ports are on the rear. Designed for attaching smaller accessories such as iFlag's and Button/LED modules. Left side USB port shares power with left side input, right side USB port shares power with right side input.
  • Compatible mounting with ReaperWare LED and Button Box Modules.

Measurements

  • Dimensions : 279x194x40mm (Excluding button/switch height).
  • Weight : 1300 Grams
  • Mounting : M4 Brass inserts on rear. 100x100mm pattern. Maximum insert depth for mounting screws should be no more than 16mm. VESA 100 compatible.

Build/Shipping Time

  • RaceConsole units are typically built and ready to dispatch within 2 working days or sooner.
  • Delivery within mainland UK is usually no more than 2 working days.
  • International delivery time varies depending on region.
  • Every ReaperWare product is designed, manufactured and shipped from England, UK.

  • SUPERIOR CONTROLS

    ReaperWare inputs have a definitive tactile feel over plastic parts that are used by other brands. Our focus is prioritising and selecting nothing but the best parts for the best possible user experience.

    Great care and thought has been put into button and switch placement. A wide variety of different input types ensures you have the correct controls for the right scenario.

    All buttons are of metal construction with LED's. LED Brightness can be adjusted with PWM dial. Perfect for low light conditions and night time racing.

    All buttons are of a 'High top' design allowing users in VR find and access buttons more easily in the heat of racing.

  • MAKE IT YOURS

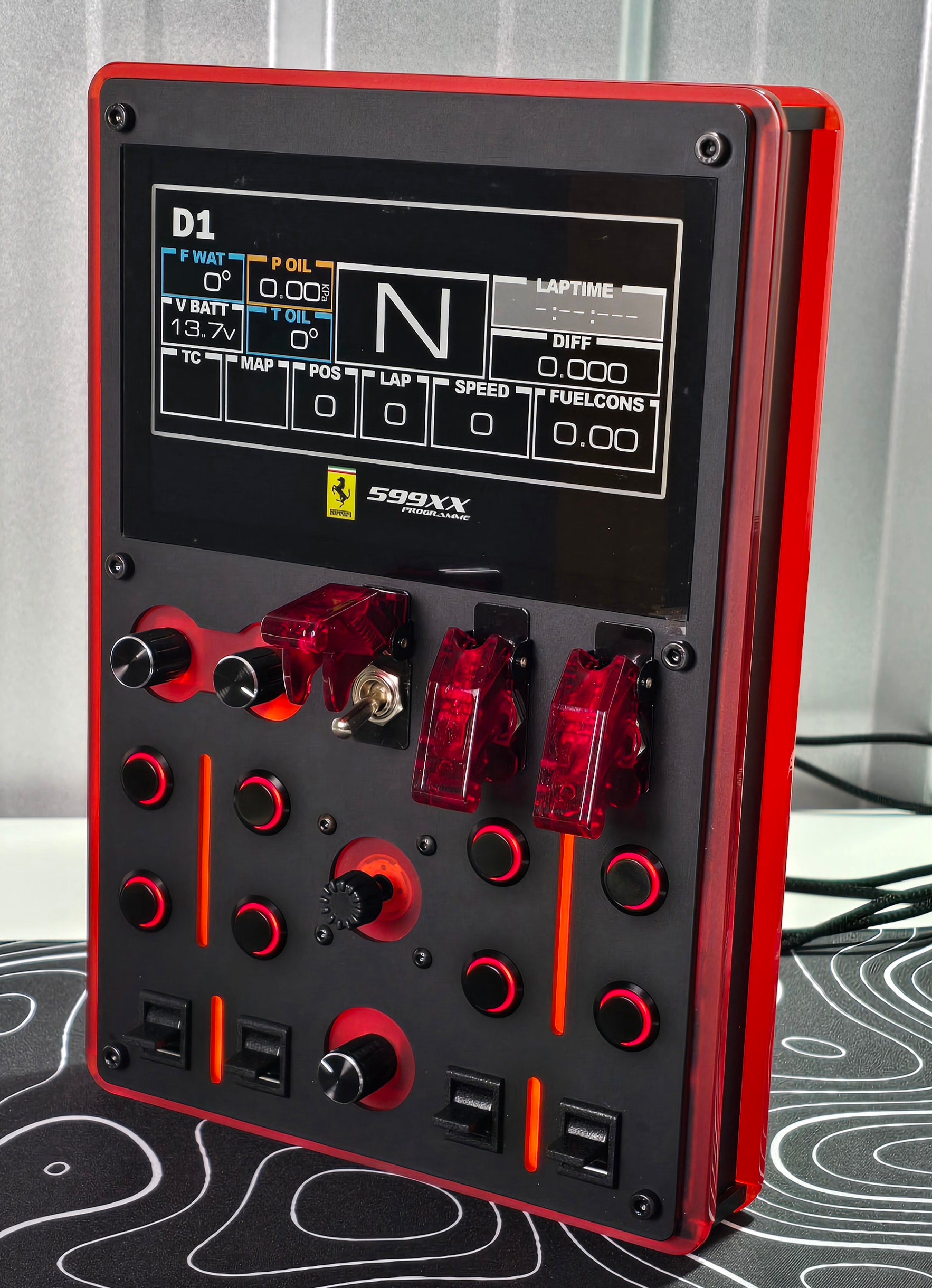

    Available in a range of colours to complement any setup. Put a unique touch to your sim racing setup... Select your enclosure colour, LED colours and toggle switch cover colours.


    Enclosures are available from a range of frosted matte colours, all edge polished to perfection, finger print resistant.

    Units can be built with or without the Engine Start/Stop button, replacing it with an additional heavy duty toggle switch if preffered.

    Compatible mounting with ReaperWare LED and Button Box Modules.

  • EFFORTLESS

    All inputs are 100% plug and play in Windows. No additional drivers or software required. Inputs just need to be mapped in game.

    All units are VESA100 compatible for easy mounting. M4 screws/bolts required.
    All cables are provided. Every unit somes with quality braided 2m USB cables.

    VoCore 60Hz touchscreen IPS display - 100% SimHub compatible.

    Quick, easy, stress free setups, means more time racing.

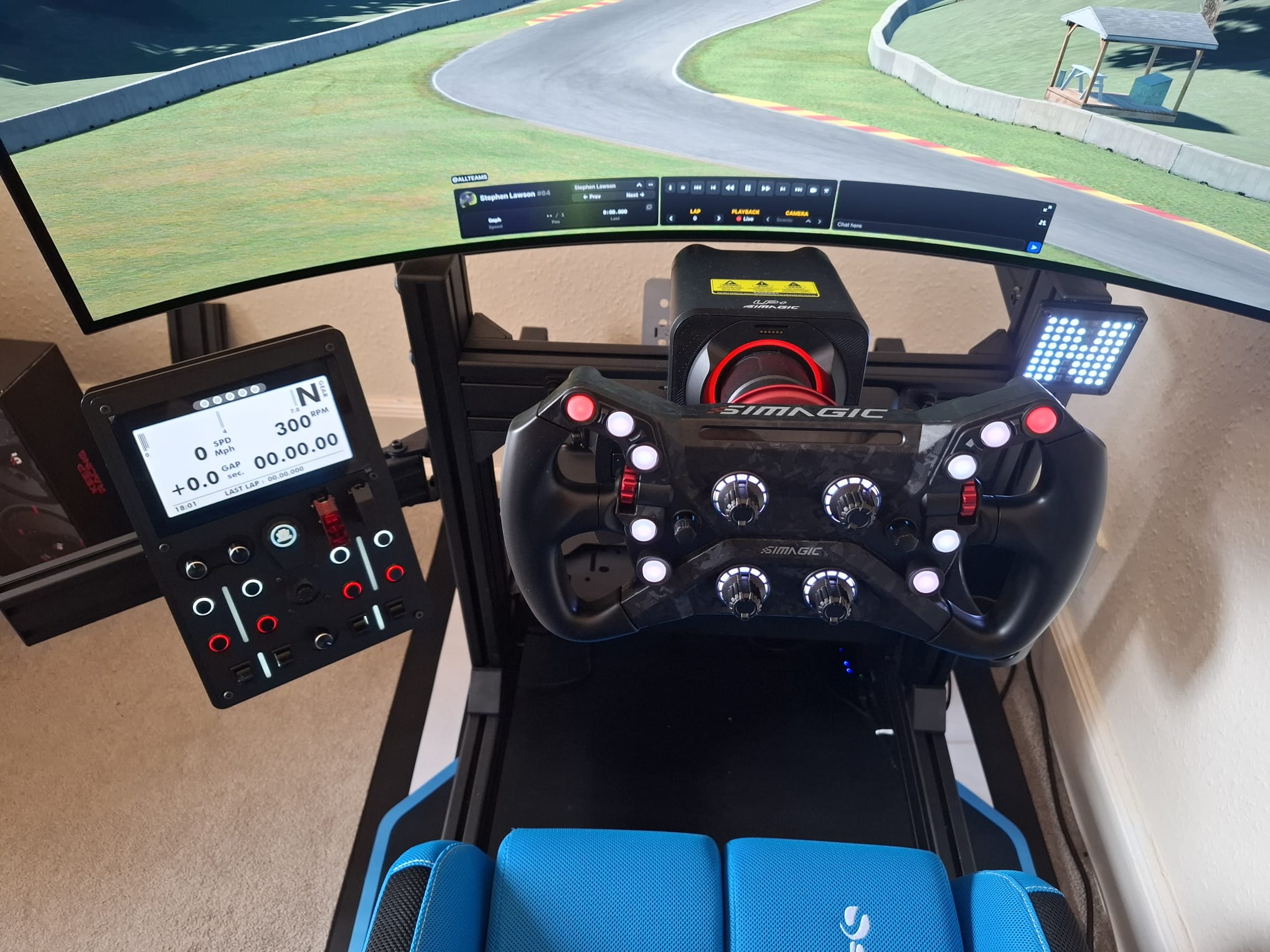

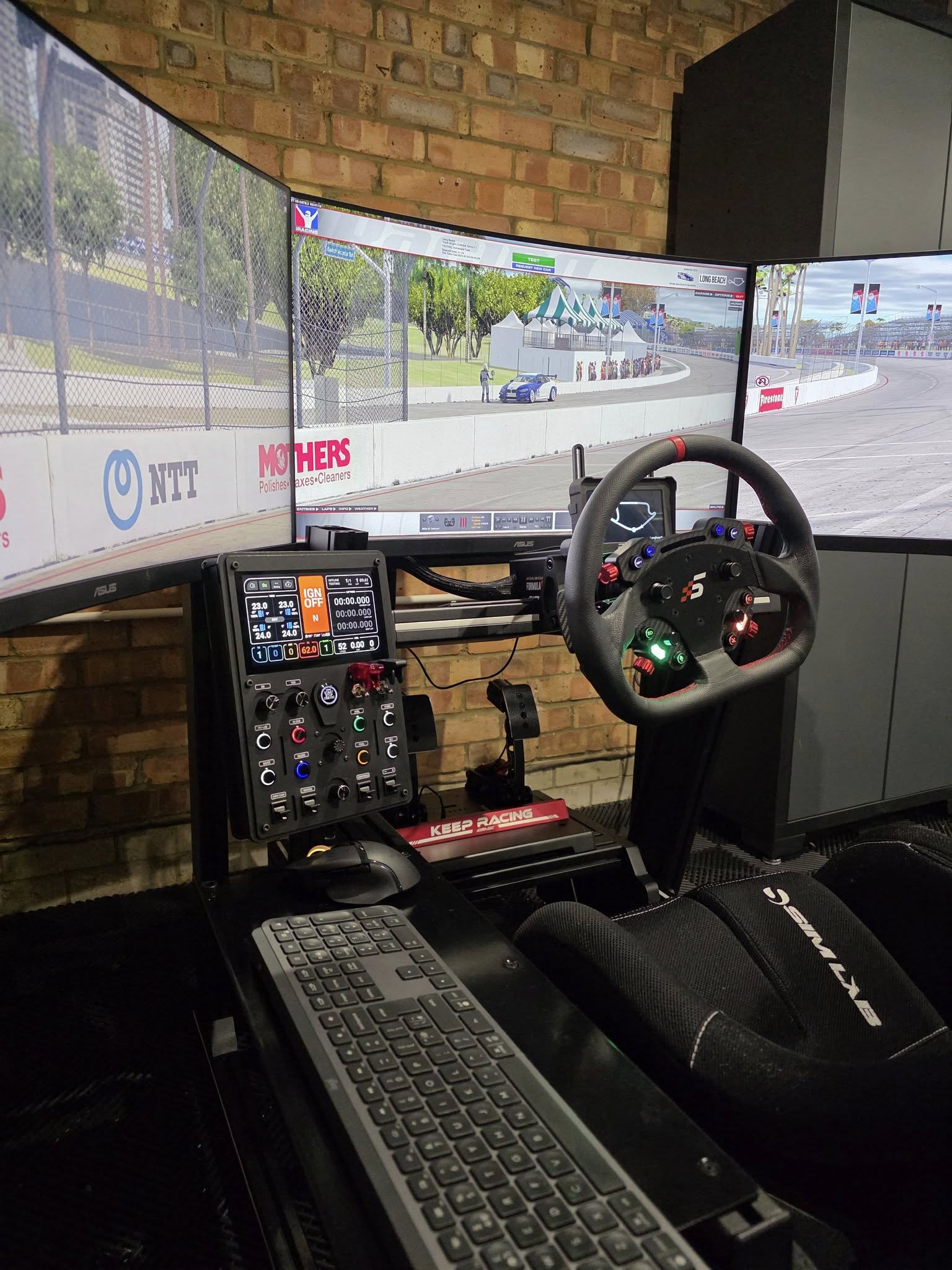

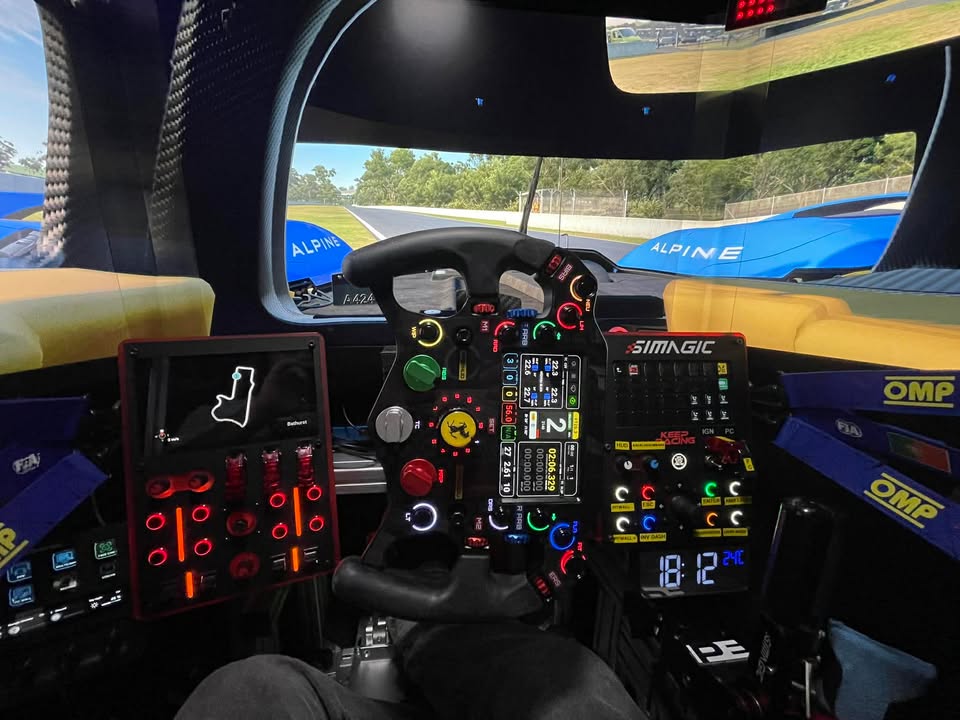

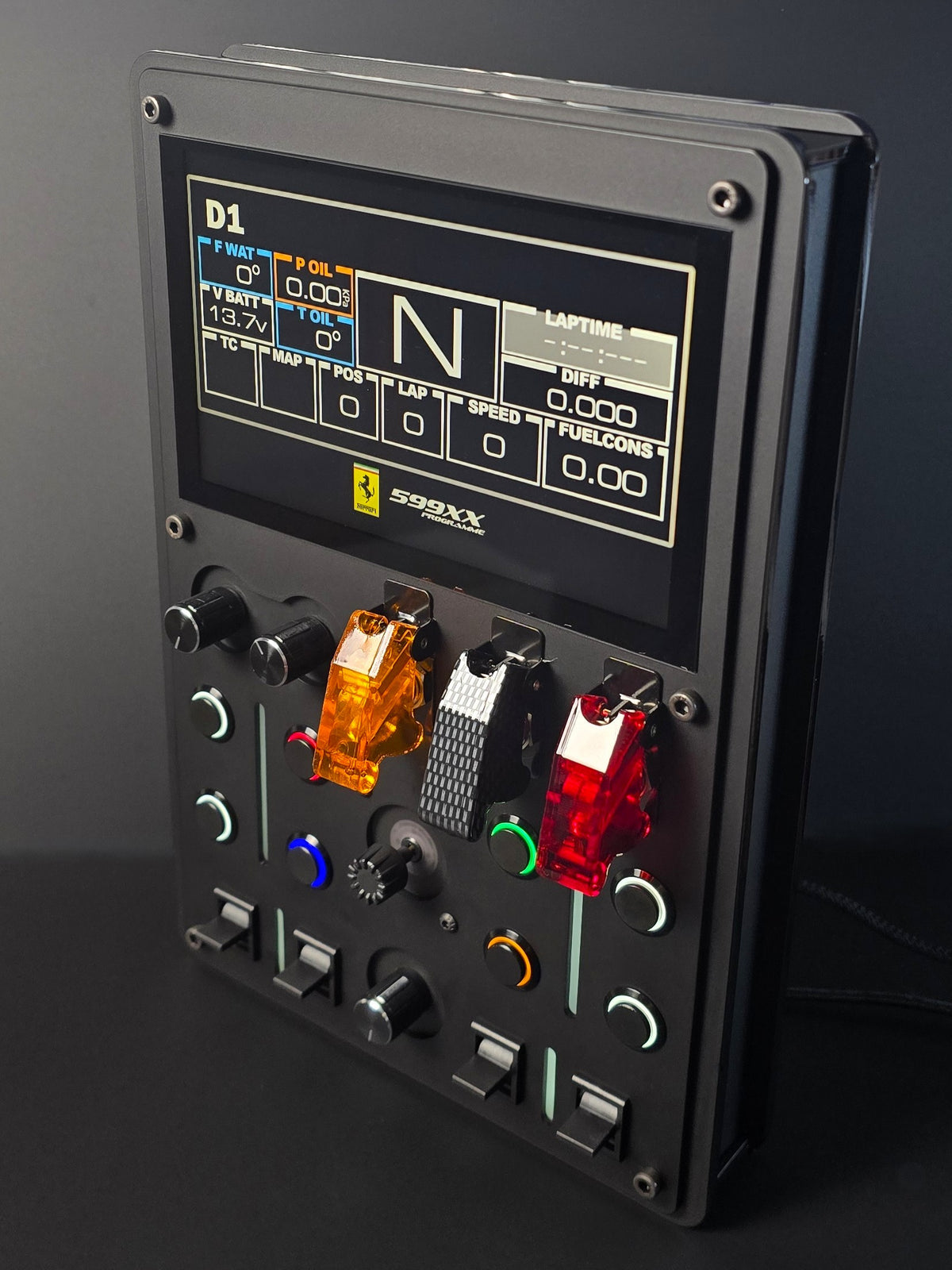

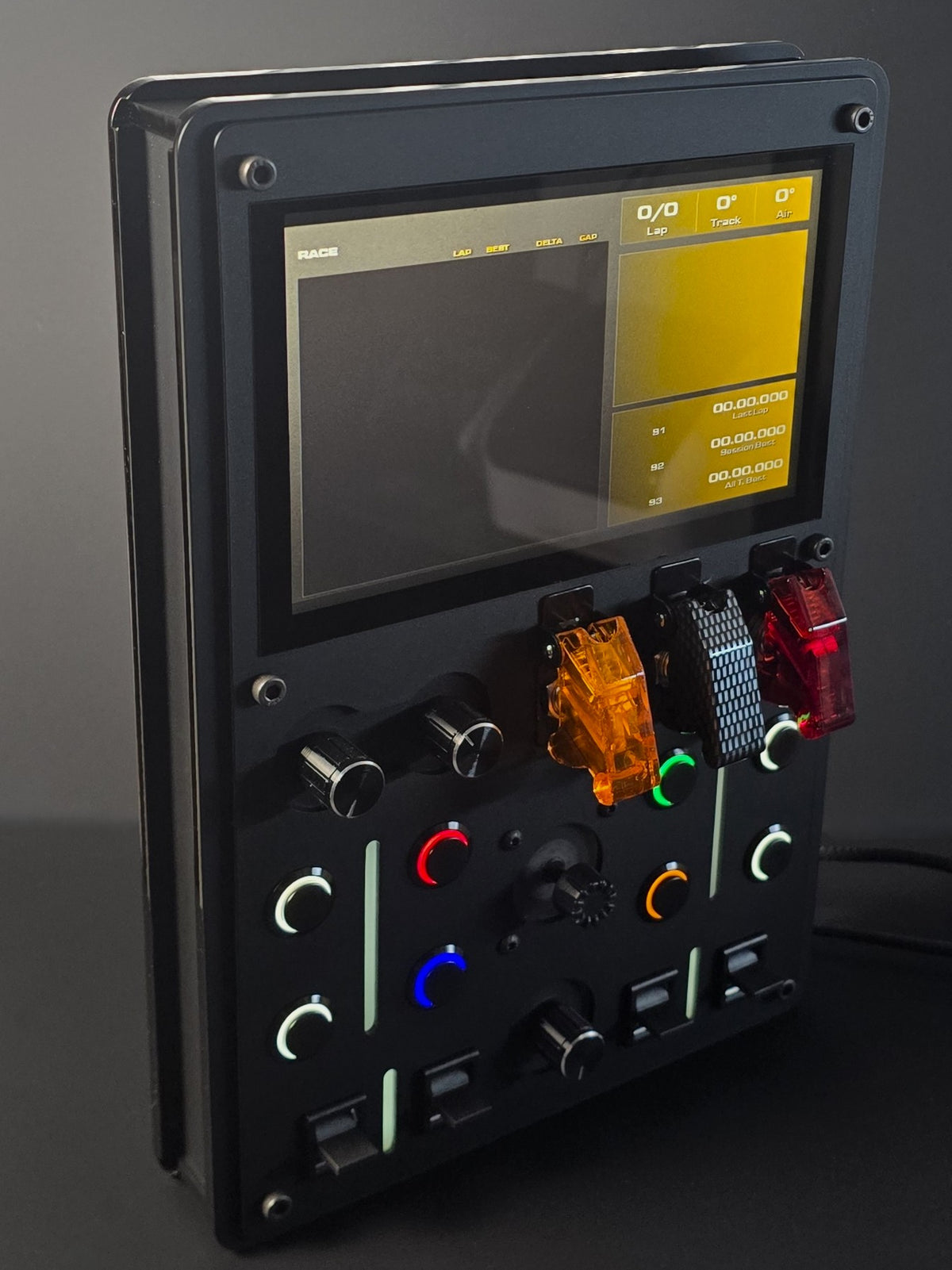

ReaperWare RaceConsole Podium in action

1 3

Some pictures may show older versions of our products
