premium sim racing enclosure with 6.8" vocore display and stream deck xl integration

RaceConsole Apex-XL

£179.99 GBP

Sale Sold out

Shipping calculated at checkout.

Color: Midnight Black

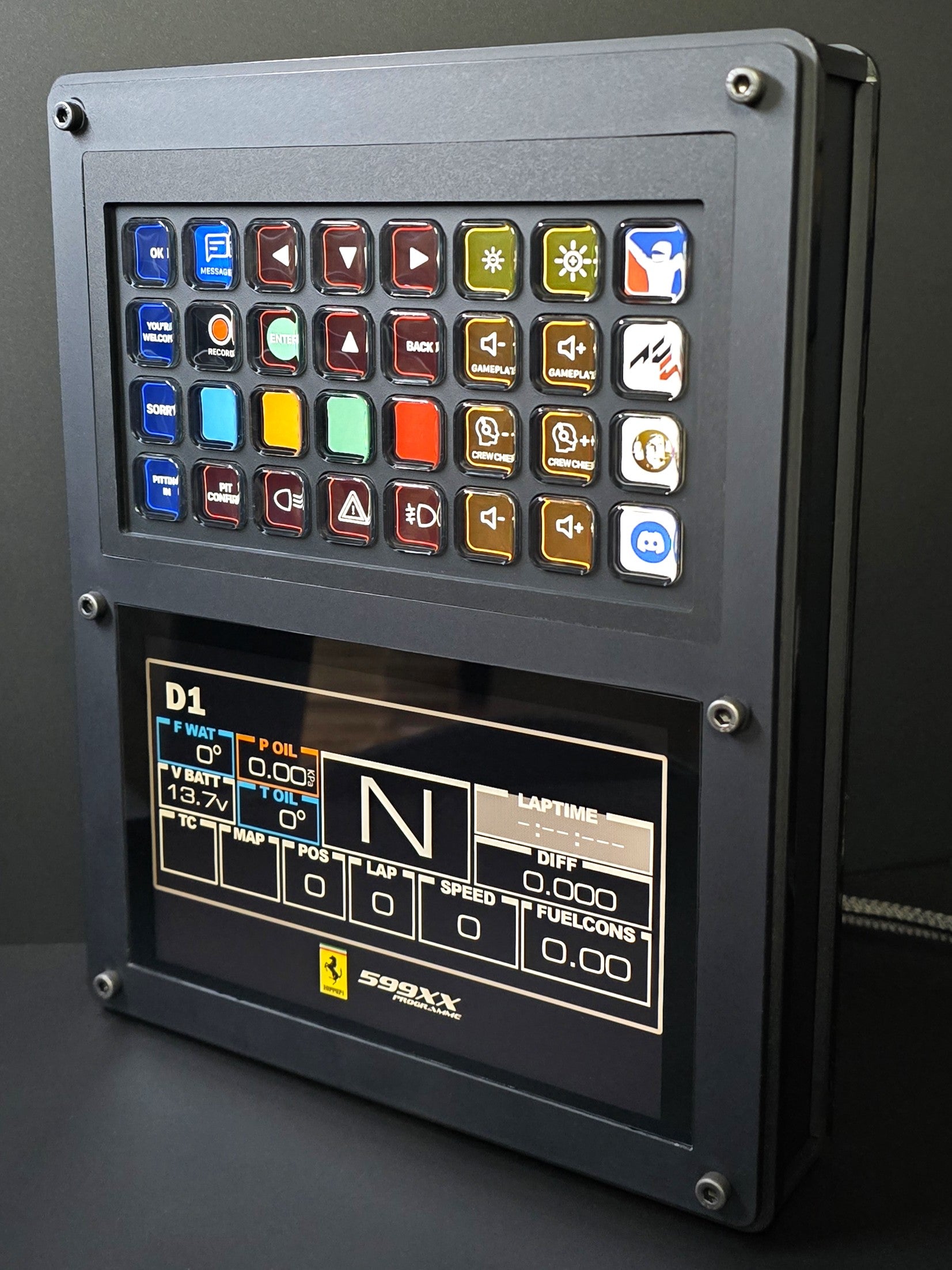

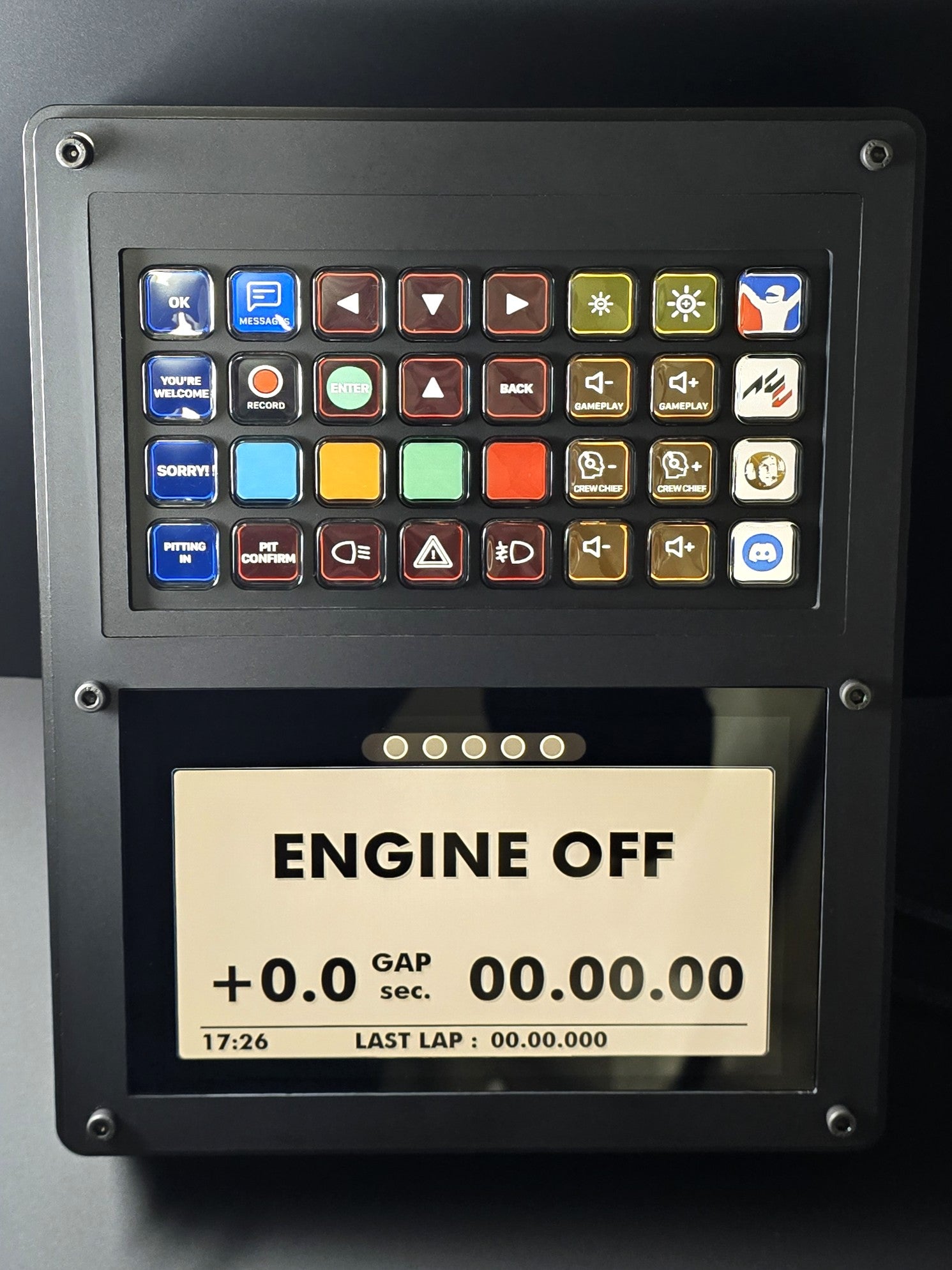

Integrate your Elgato Stream Deck XL into your sim rig with the ReaperWare RaceConsole Apex-XL!

Featuring an included and pre-fitted VoCore 6.8" IPS touch screen display.

Together with the functionality and versatility of your Stream Deck gives you the ultimate control over your setup.

Features:

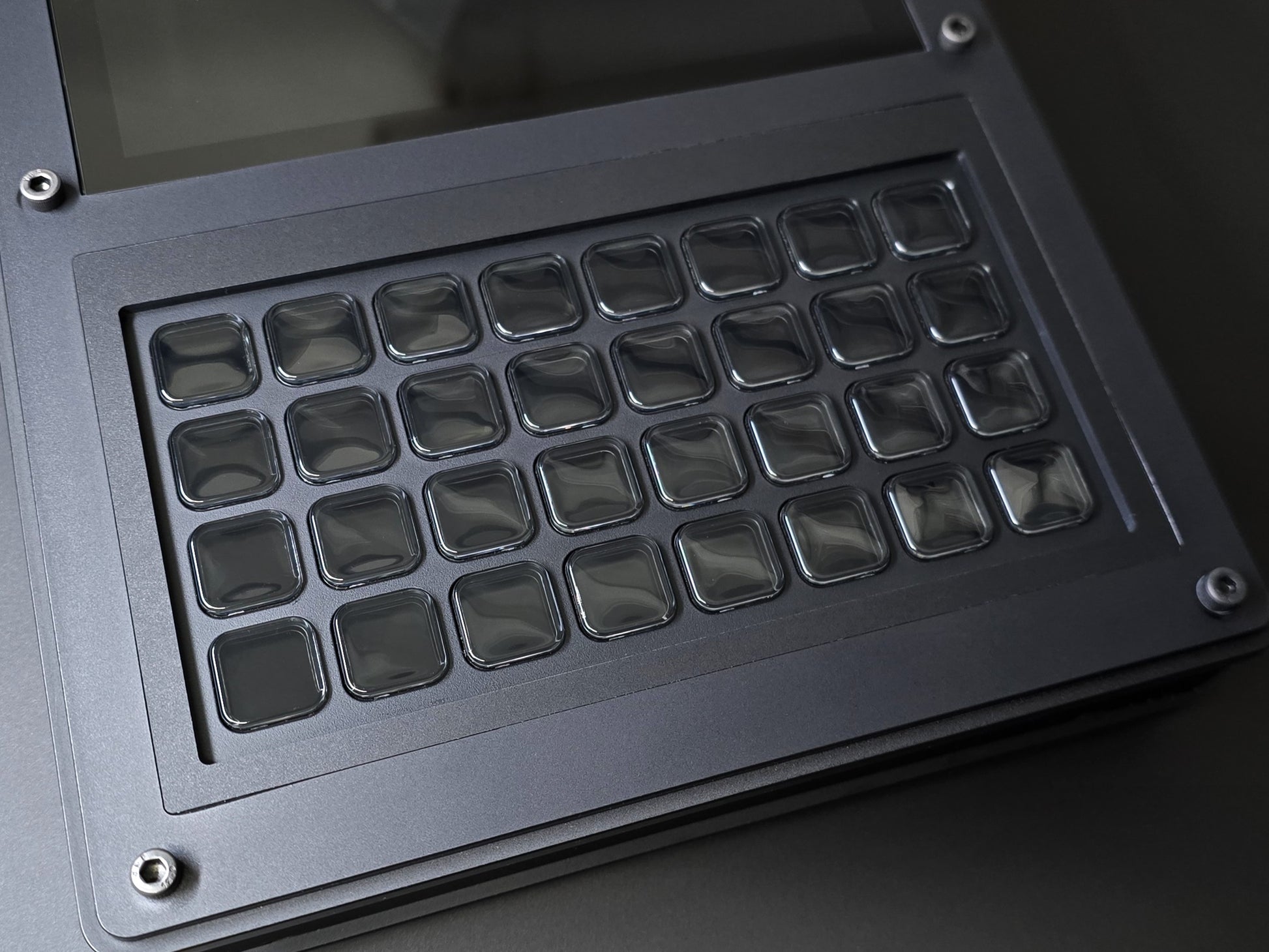

Elgato Stream Deck XL integration.
Stream Deck XL can be fitted in just two minutes, and in any orientation.
Includes a pre-fitted VoCore 6.8" IPS touch screen display.
The Apex-XL can be mounted in any orienatation. (Display can be on top or bottom and your Stream Deck can be flipped to match).
Integrated USB hub - Two available Type-A USB ports on rear.
Machine cut cast acrylic enclosure, edge polished to perfection.
VESA 100mm M4 mounting points on rear.

PLEASE NOTE: 6.8" VoCore display is provided and pre-fitted.
However, a Stream Deck is not included. You must supply and fit your own Stream Deck.

Designed, Manufactured and Hand assembled in the UK by ReaperWare.

View full details

Detailed Specifications

VoCore Display Specifications

Includes VoCore 6.8" display pre-fitted.
148.1mm x 88.9mm display size.
24bit & 16bit colour modes
800x480 resolution.
60Hz refresh rate.
Capacitive, two point touch.
Power Draw : 2.4 watts (100% brightness).
Peak brightness 400LM

Construction

Enclosure is 100% precision machine cut from cast acrylic Perspex and edge polished to perfection. No wonky 3D prints here!
Finger print resistant frosted matte finish.
8mm thick at the front, the rest of the unit is 5-10mm thick.
In-house custom designed electronics and PCB's ensuring long term reliability and serviceability.
M4 Brass threaded inserts on rear for mounting.

Connectivity

2x USB Inputs.
2-meter USB Type-A to Type-C cables are included.
VoCore display requires Windows 10/11 and the latest version of SimHub.

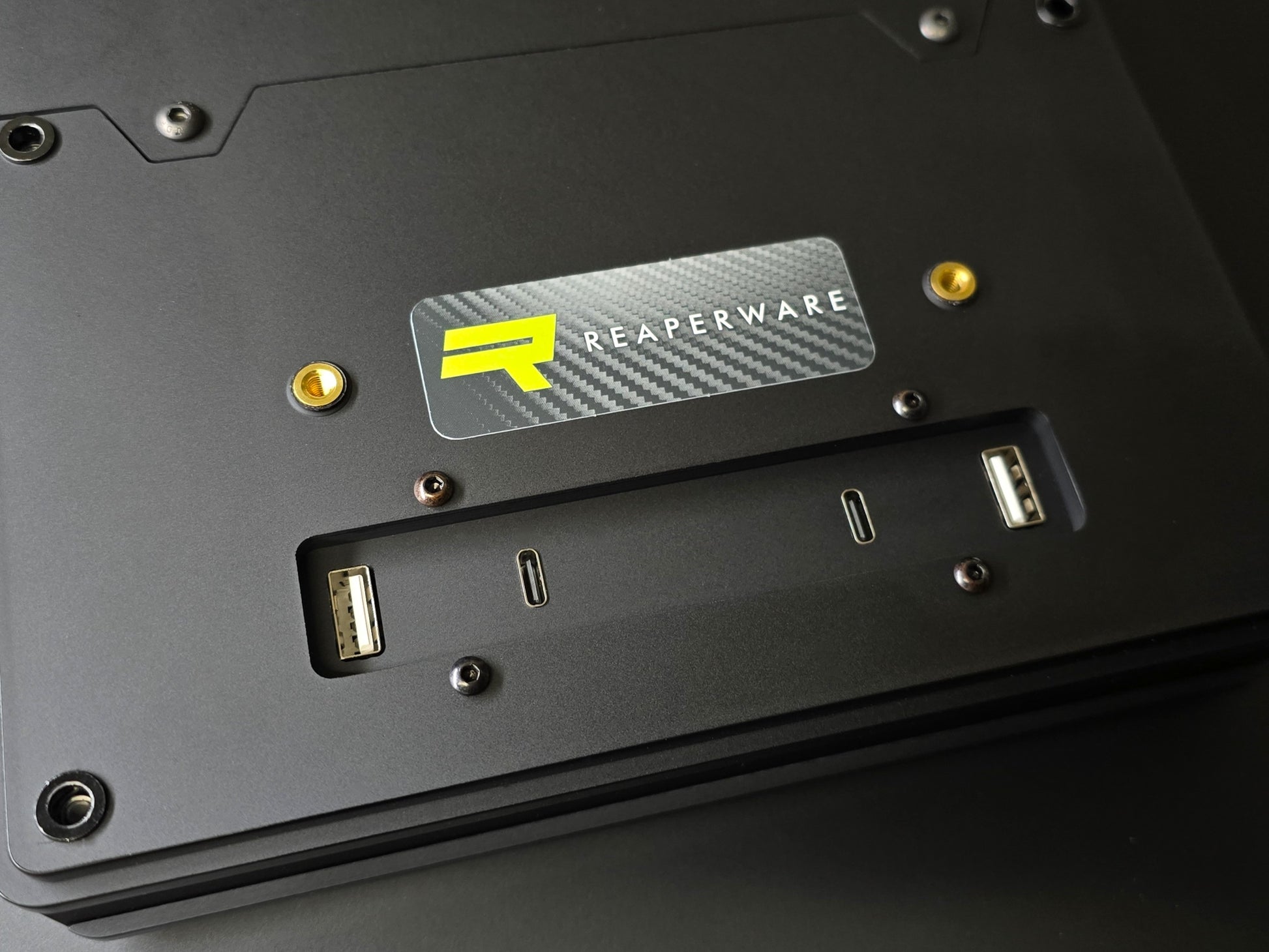

Integrated USB Hub. Type-A ports are on the rear. Designed for attaching smaller accessories such as iFlag's and Button/LED modules. Left side USB port shares power with left side input, right side USB port shares power with right side input.

Measurements

Dimensions : 250x202x38mm (Excluding screw/bolt height).
Weight : 1100 grams (1500 grams when Streamdeck XL is fitted).

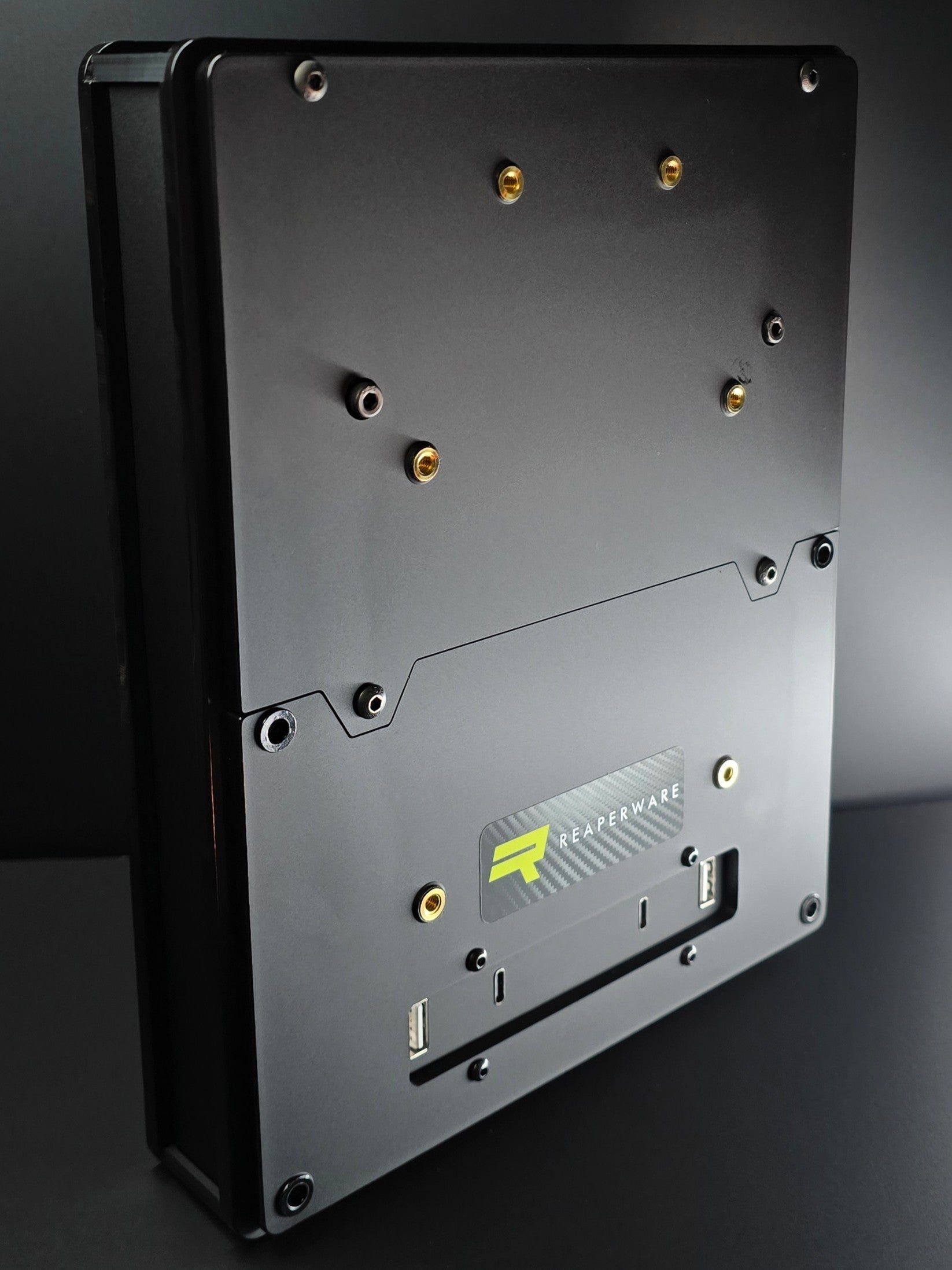

Mounting : M4 Brass inserts on rear. 100x100mm pattern. Maximum insert depth for mounting screws should be no more than 16mm. VESA 100 compatible.
Compatible mounting with ReaperWare LED and Button Box Modules.

Build/Shipping Time

RaceConsole units are typically built and ready to dispatch within 2 working days or sooner.
Delivery within mainland UK is usually no more than 2 working days.
International delivery time varies depending on region.
Every ReaperWare product is designed, manufactured and shipped from England, UK.

NOTE : Stream Deck XL is not included

Please note that the 6.8" VoCore display is provided and pre-fitted.
However, a Stream Deck is not included. You must supply and fit your own Stream Deck.

SEAMLESS INTEGRATION

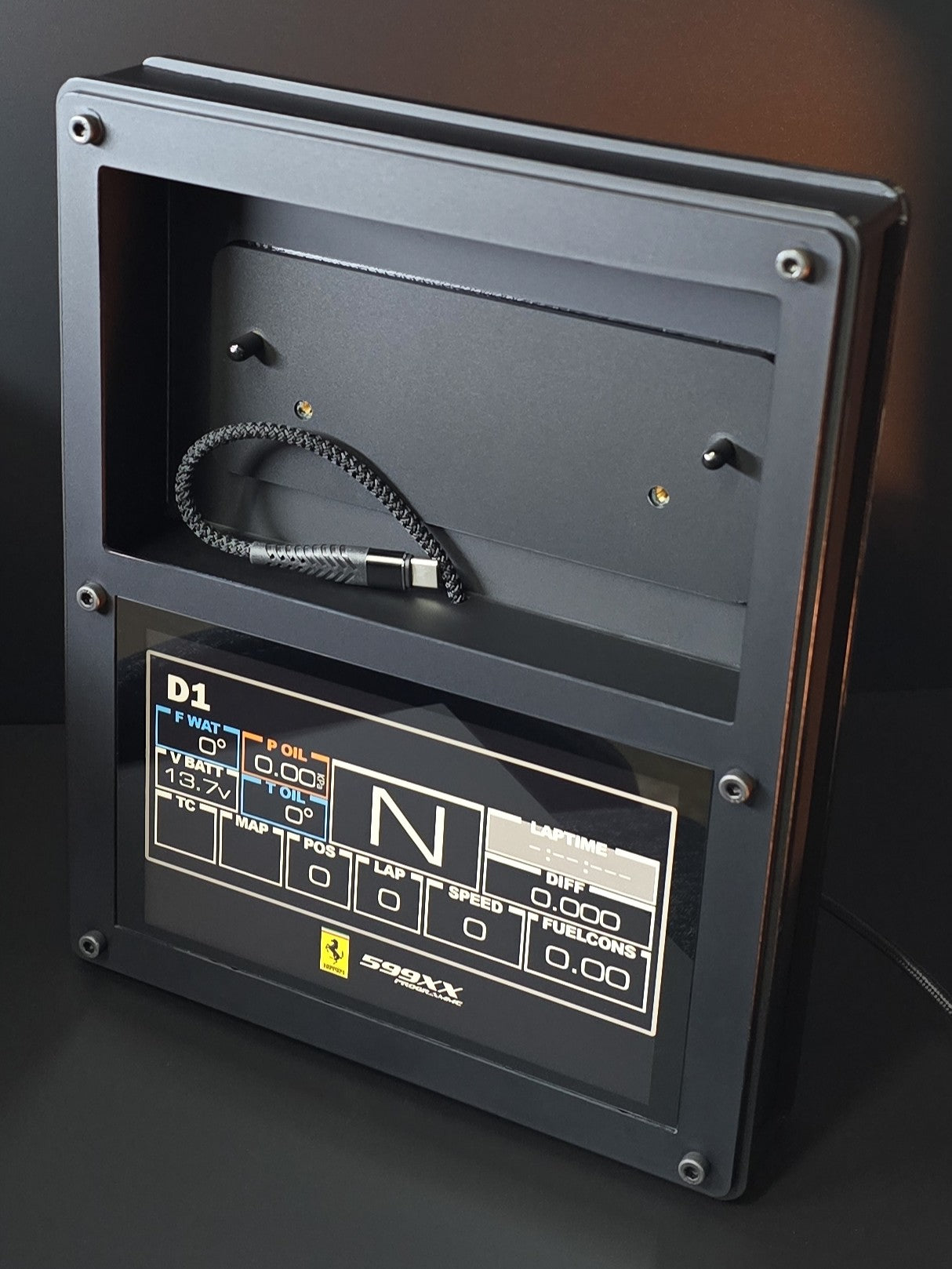

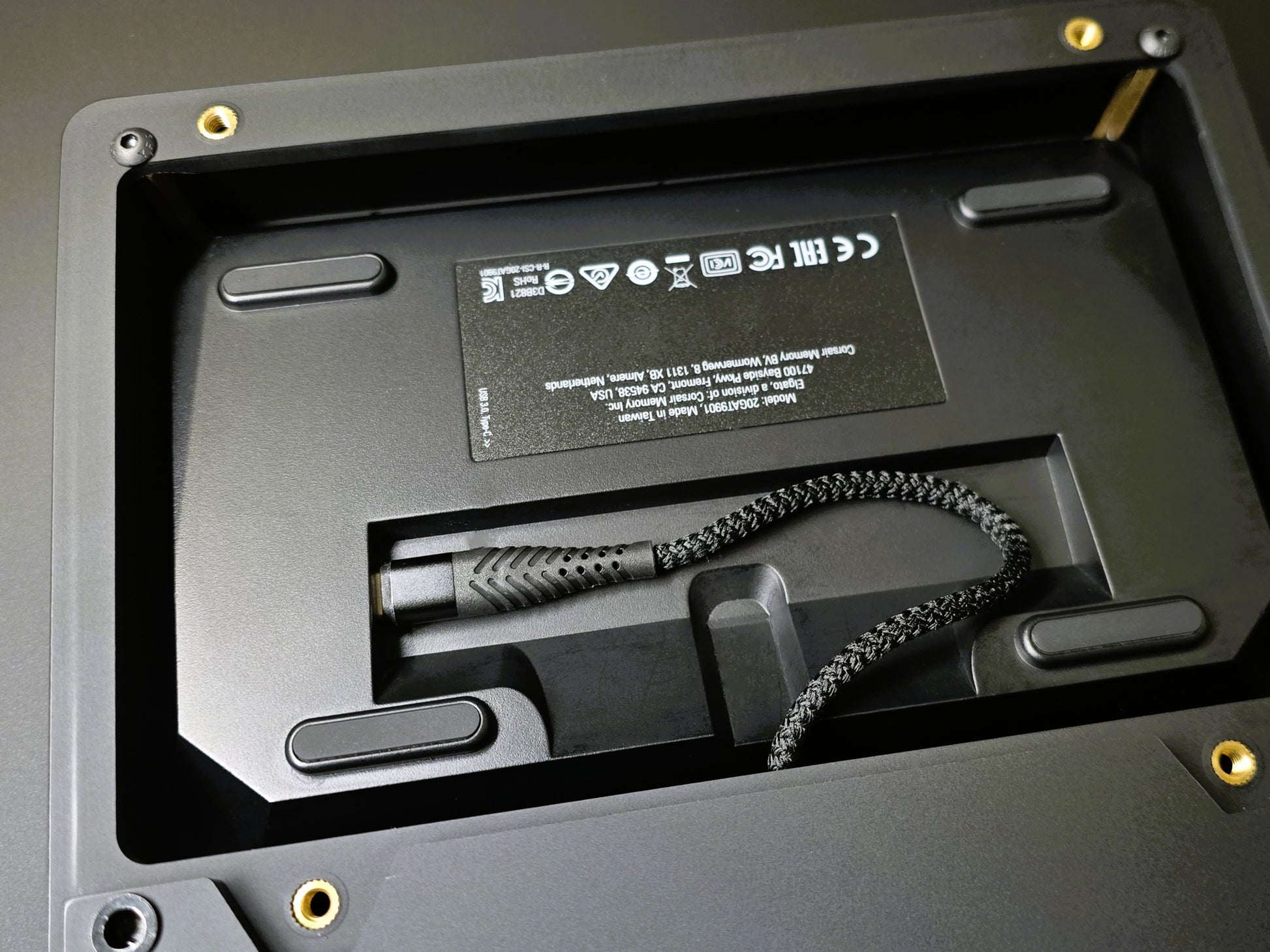

Stream Deck can be fitted in just 2 minutes. Connected to internal USB hub with internal cable.

All units are VESA100 compatible for easy mounting. M4 screws/bolts required.

Additional pair of USB type-A ports on rear , Ideal for attaching smaller accessories and ReaperWare button box and LED modules
EFFORTLESS
Integrated VoCore display is fully supported in SimHub.

Quick, easy, stress free setups, means more time racing.

Compatible mounting with ReaperWare LED and Button Box Modules.
MAKE IT YOURS

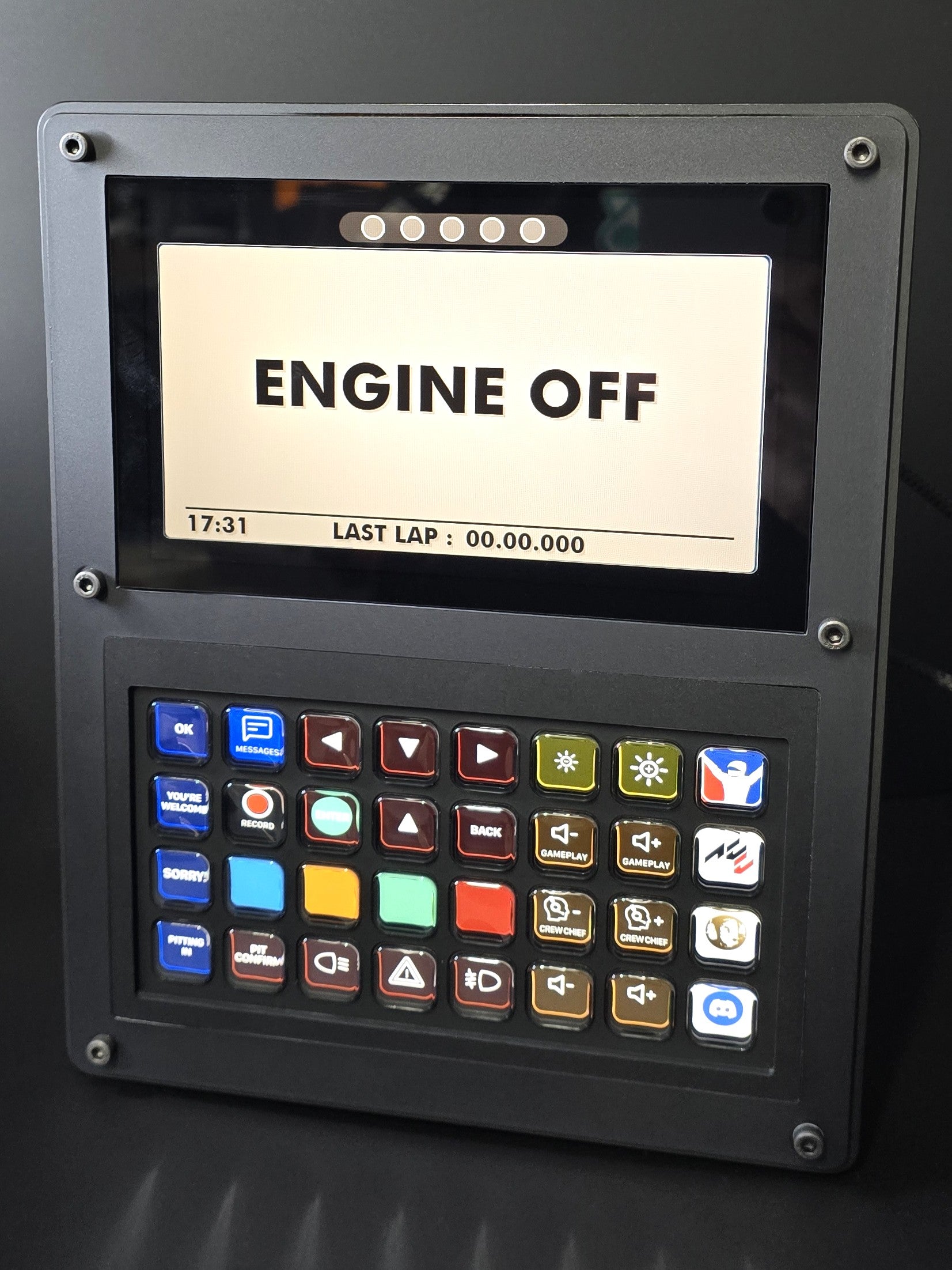

Stream Deck can be mounted in any orientation. Choose to have your Stream Deck on the top or bottom. Display can be rotated in software.

Available in a range of colours to complement any setup. Put a unique touch to your sim racing setup.

Enclosures are available from a range of frosted matte colours, all edge polished to perfection, finger print resistant.
