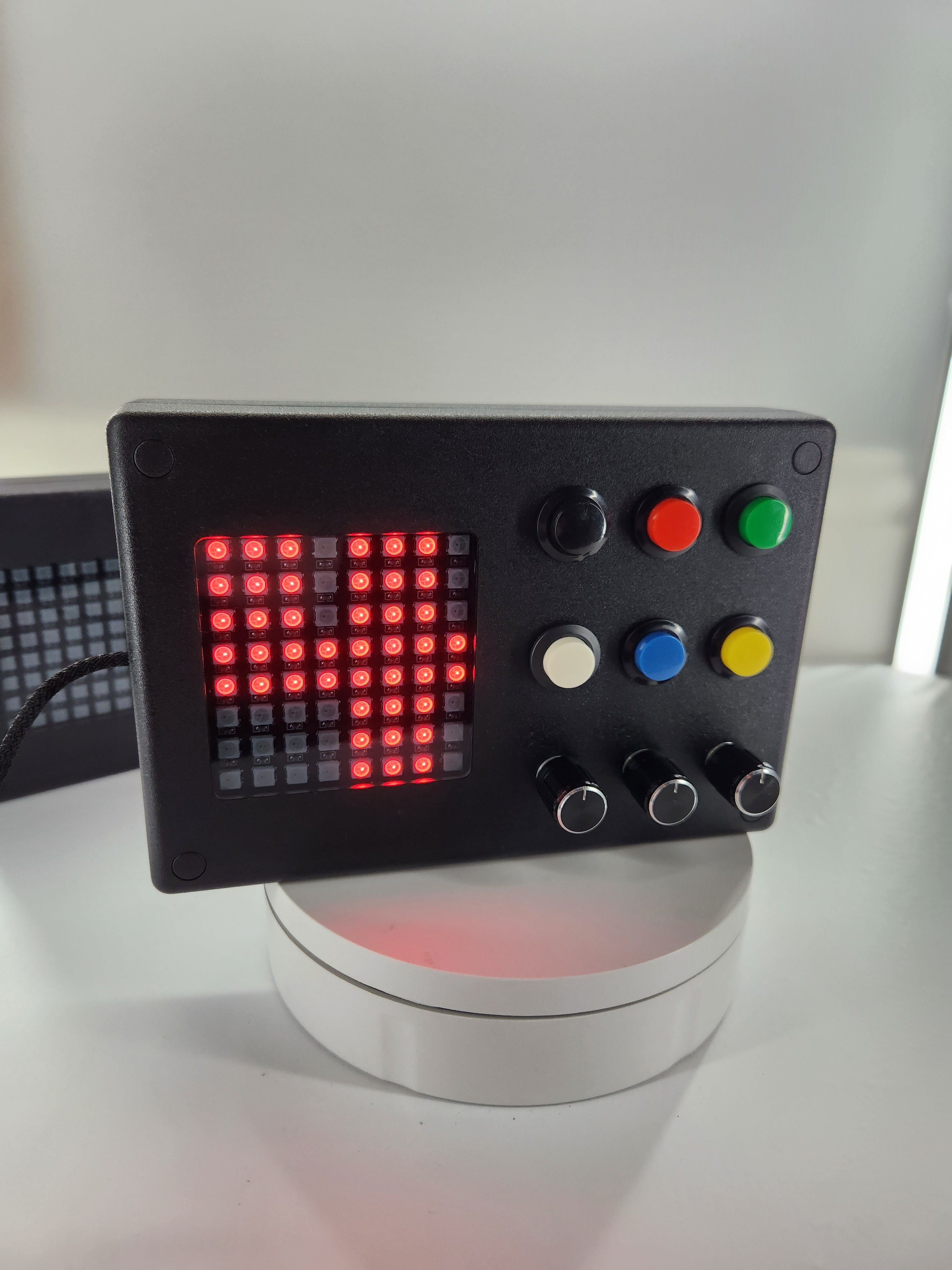

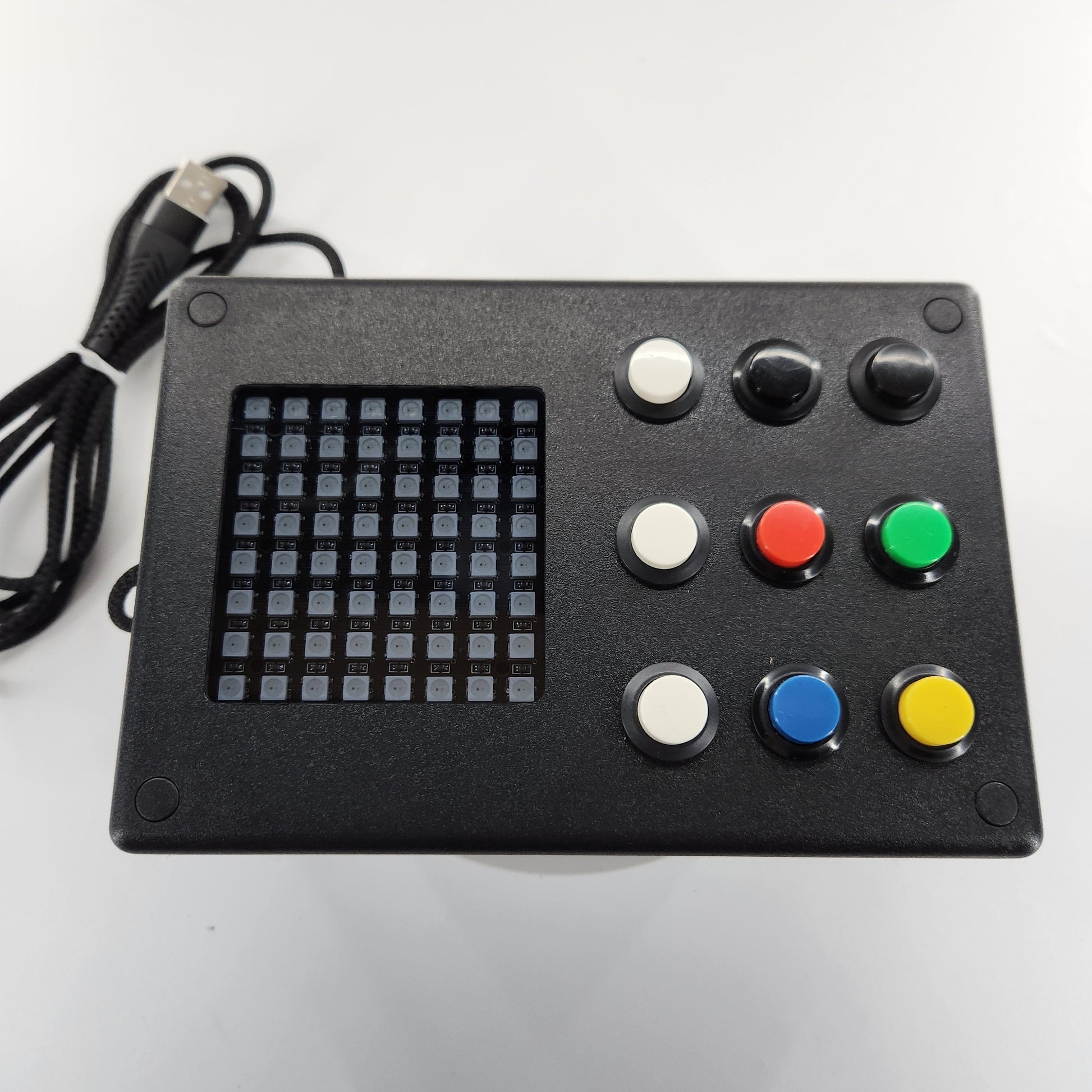

• "ReaperWare iFlag+ USB sim racing button box combining a programmable 8x8 RGB LED matrix display with up to 9 coloured push buttons
1 1

affordable usb button box with integrated iFlag display

iFlag+ Button Box (9x Button Version)

iFlag+ Button Box (9x Button Version)

£45.99 GBP
£45.99 GBP
Sale Sold out
Shipping calculated at checkout.

Multi function USB button box with integrated iFlag LED matrix. Built for SIM racing.

Available in two different configurations:

  1. 9x 16mm momentary push buttons
  2. 6x 16mm momentary buttons and 3 rotary encoders.

Integrated iFlag LED matrix.

iFlag can be rotated in software enabling mounting in any orientation.

All contained in a tough ABS plastic enclosure measuring approx 175x125x40mm.

On the rear of all our boxes are M4 threaded mounting points in a 100x100 pattern for easy fitting.

All units come pre-fitted with premium quality braided 2m USB cables.

Buttons are completely plug and play in Windows. No drivers or installation required. Appears in Windows as a USB game controller. Can be used with any PC game or software that allows for remappable control schemes.

Supported games include (but not limited to):

  • Assetto Corsa Competizione (ACC)
  • Assetto Corsa (AC)
  • AC Rally
  • iRacing
  • Le Mans Ultimate (LMU)
  • Automobilista 2 (AMS2)
  • F1 2021 through F1 2026 Series
  • rFactor 2
  • RaceRoom Racing Experience
  • Dirt Rally 2.0
  • Project Cars
  • + many more!

iFlag requires SimHub to function.

Designed, Manufactured and Hand assembled in the UK by ReaperWare.

View full details

Detailed Specifications

Inputs

Available in two different configurations:

  1. 9x 16mm momentary push buttons
  2. 6x 16mm momentary buttons and 3 rotary encoders.

Construction

  • Contained in a tough ABS enclosure with a textured fingerprint resistant finish.
  • 5mm tinted Perspex window to reduce LED glare.
  • M4 Brass threaded inserts on rear for mounting. 100mm pattern.
  • 2 meter USB cable pre-fitted.

Connectivity

  • Any USB Type-A port capable of supplying up to 2.5 watts of power.
  • A 2-meter USB Type-A to Type-C cable is included.
  • Windows 10/11 and the latest version of SimHub.
  • A default LED flag profile is included with SimHub. We provide our own optional iFlag profile for free, downloadable from the 'Help & Downloads' page. Compatible with third party 8x8 LED Matrix profiles also.
  • Multiple iFlag's can be installed. Each iFlag can be setup to display events independently of each other.
  • Buttons are plug and play in Windows. No additional drivers or software required. Inputs just need to be mapped in game.

Measurements

  • Dimensions : Enclosure is 175x125x40mm (Excluding button/switch height).
  • Weight : 350 Grams
  • Mounting : M4 threaded inserts on rear. 100x100mm pattern. Maximum insert depth for mounting screws should be no more than 20mm. VESA 100 compatible.

Build/Shipping Time

  • Typically built and ready to dispatch within 2 working days or sooner.
  • Delivery within mainland UK is usually no more than 2 working days.
  • International delivery time varies depending on region.
  • Every ReaperWare product is designed, manufactured and shipped from England, UK.
