affordable usb button box with integrated iFlag display

iFlag+ Button Box (Encoder Version)

iFlag+ Button Box (Encoder Version)

£48.99 GBP
£48.99 GBP
Sale Sold out
Shipping calculated at checkout.

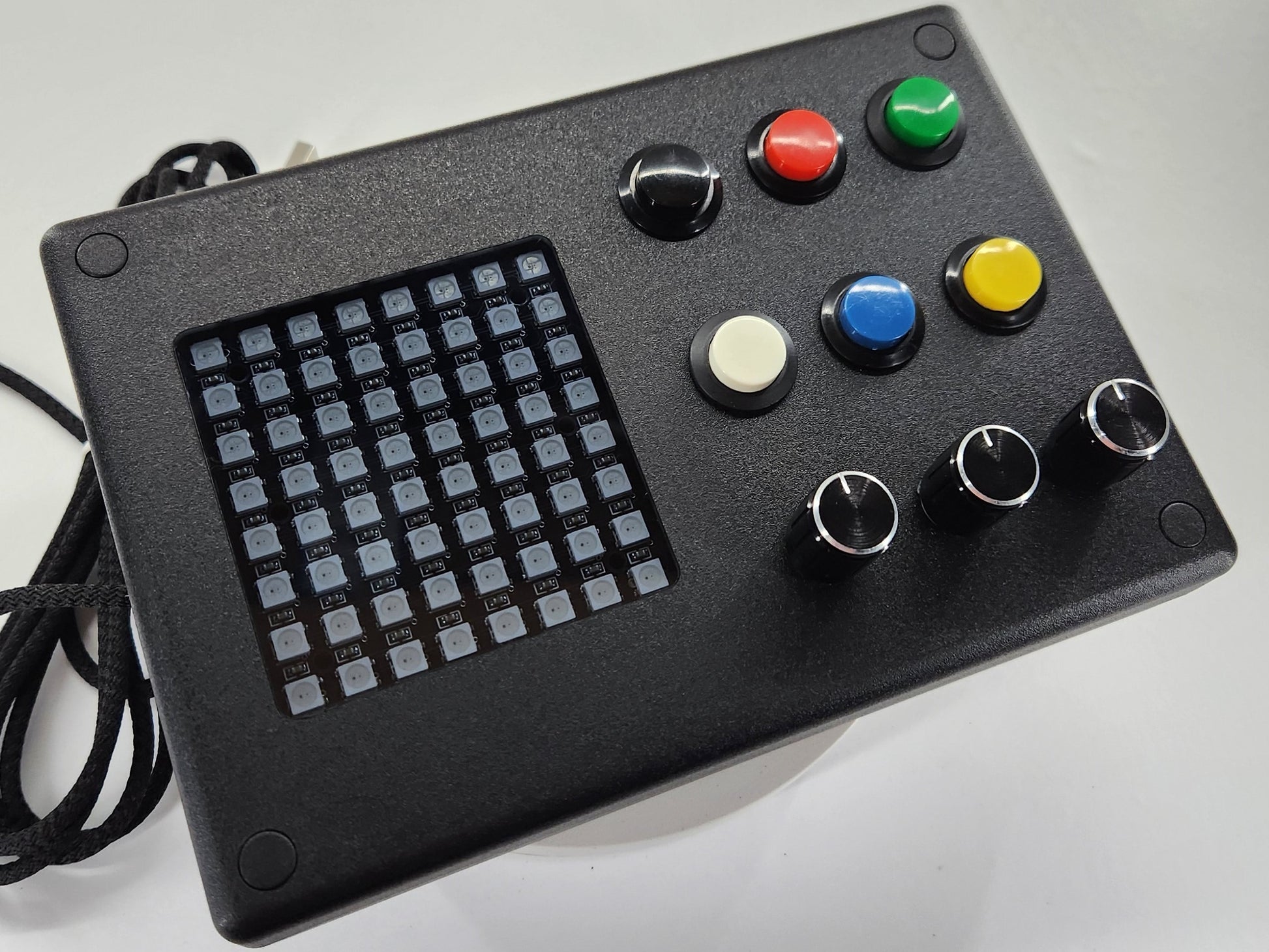

Multi function USB button box with integrated iFlag LED matrix. Built for SIM racing.

Available in two different configurations:

  1. 9x 16mm momentary push buttons
  2. 6x 16mm momentary buttons and 3 rotary encoders.

Integrated iFlag LED matrix.

iFlag can be rotated in software enabling mounting in any orientation.

All contained in a tough ABS plastic enclosure measuring approx 175x125x40mm.

On the rear of all our boxes are M4 threaded mounting points in a 100x100 pattern for easy fitting.

All units come pre-fitted with premium quality braided 2m USB cables.

Buttons are completely plug and play in Windows. No drivers or installation required. Appears in Windows as a USB game controller. Can be used with any PC game or software that allows for remappable control schemes.


iFlag requires SimHub to function.

Designed, Manufactured and Hand assembled in the UK by ReaperWare.

View full details

Detailed Specifications

Inputs

Available in two different configurations:

  1. 9x 16mm momentary push buttons
  2. 6x 16mm momentary buttons and 3 rotary encoders.

Construction

  • Contained in a tough ABS enclosure with a textured fingerprint resistant finish.
  • 5mm tinted Perspex window to reduce LED glare.
  • M4 Brass threaded inserts on rear for mounting. 100mm pattern.
  • 2 meter USB cable pre-fitted.

Connectivity

  • Any USB Type-A port capable of supplying up to 2.5 watts of power.
  • A 2-meter USB Type-A to Type-C cable is included.
  • Windows 10/11 and the latest version of SimHub.
  • A default LED flag profile is included with SimHub. We provide our own optional iFlag profile for free, downloadable from the 'Help & Downloads' page. Compatible with third party 8x8 LED Matrix profiles also.
  • Multiple iFlag's can be installed. Each iFlag can be setup to display events independently of each other.
  • Buttons are plug and play in Windows. No additional drivers or software required. Inputs just need to be mapped in game.

Measurements

  • Dimensions : Enclosure is 175x125x40mm (Excluding button/switch height).
  • Weight : 350 Grams
  • Mounting : M4 threaded inserts on rear. 100x100mm pattern. Maximum insert depth for mounting screws should be no more than 20mm. VESA 100 compatible.

Build/Shipping Time

  • Typically built and ready to dispatch within 2 working days or sooner.
  • Delivery within mainland UK is usually no more than 2 working days.
  • International delivery time varies depending on region.
  • Every ReaperWare product is designed, manufactured and shipped from England, UK.
