VOCORE DISPLAY SETUP GUIDE

✔ A quick guide on setting up your VoCore display in SimHub.

✔ Follow the below instructions for a quick and easy setup.

✔ Get setup and running in just two minutes!

✔ Quick setup video at bottom of this page!

GETTING STARTED WITH A VOCORE DISPLAY DEVICE

To use your VoCore display, you must already have SimHub downloaded and installed.

Although not required, We recommend you purchase a license for SimHub as it's truly an amazing piece of software.

GET SIMHUB

ADDING A VOCORE DISPLAY IN SIMHUB

Add a VoCore Display

  • Navigate to the 'Devices' tab on the left hand side of SimHub's home page.
  • Click on 'Add new device'

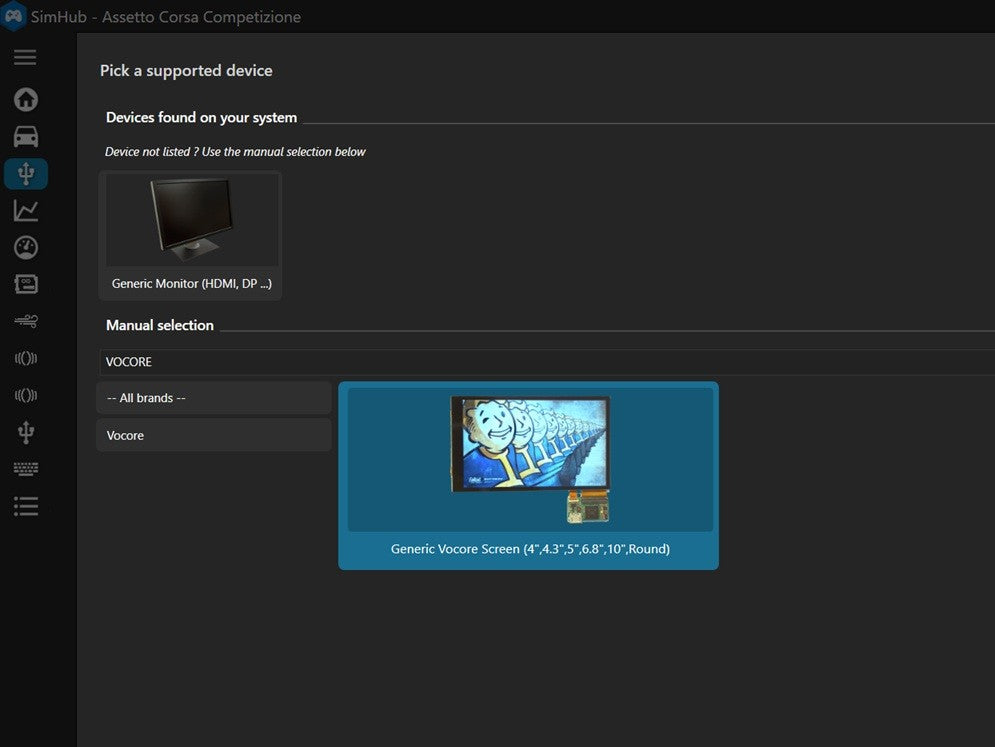

  • In the search bar type in 'VoCore', you will see 'Generic VoCore screen'. Select this and press 'OK'.
  • You will now see a VoCore device has been added.

verify connection IN SIMHUB

Connect your device.

  • Connect your VoCore device to a suitable USB port and wait for SimHub to detect it.
  • Once successfully detected, SimHub will display a green status bar under the VoCore device in the Devices tab.

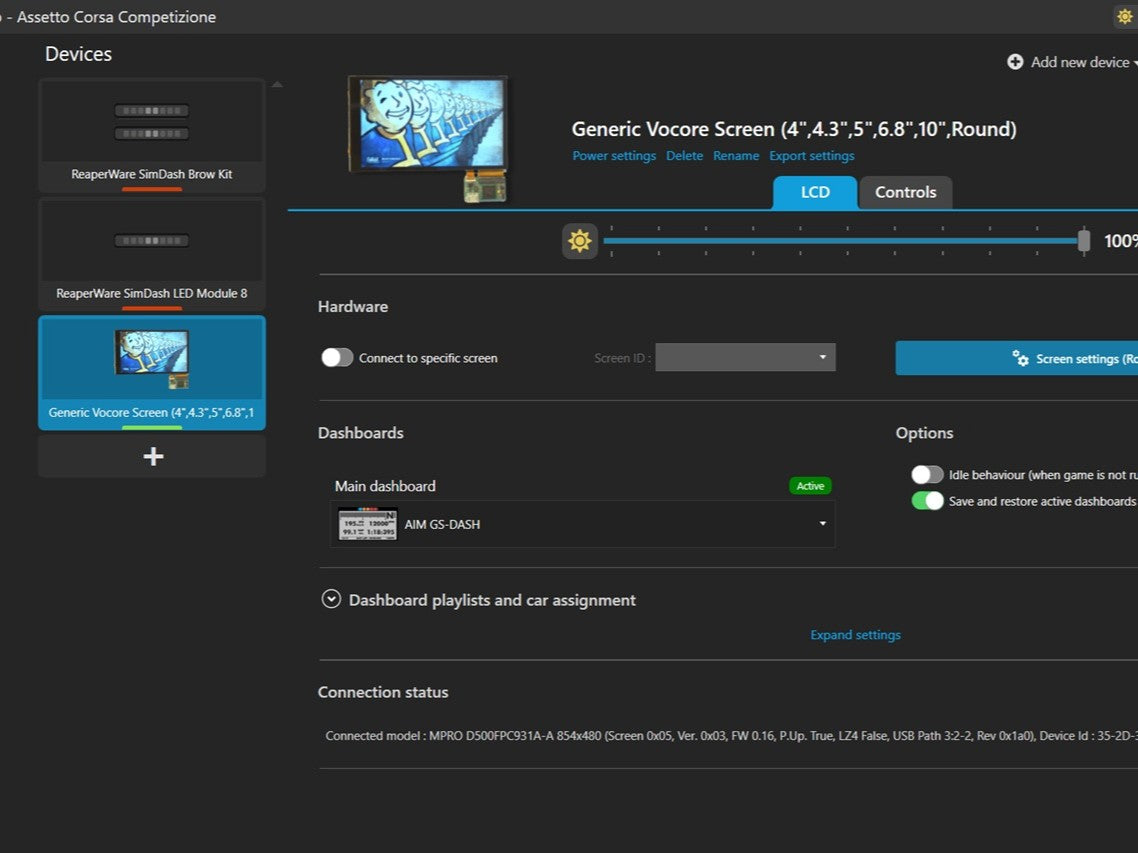

  • Click this bar to open the device options, where the VoCore display will show as "Connected."
  • From this menu, you can adjust settings such as screen orientation, refresh rate, and display brightness.

APPLY A DASHBOARD TO YOUR VOCORE DISPLAY

Apply a Dashboard

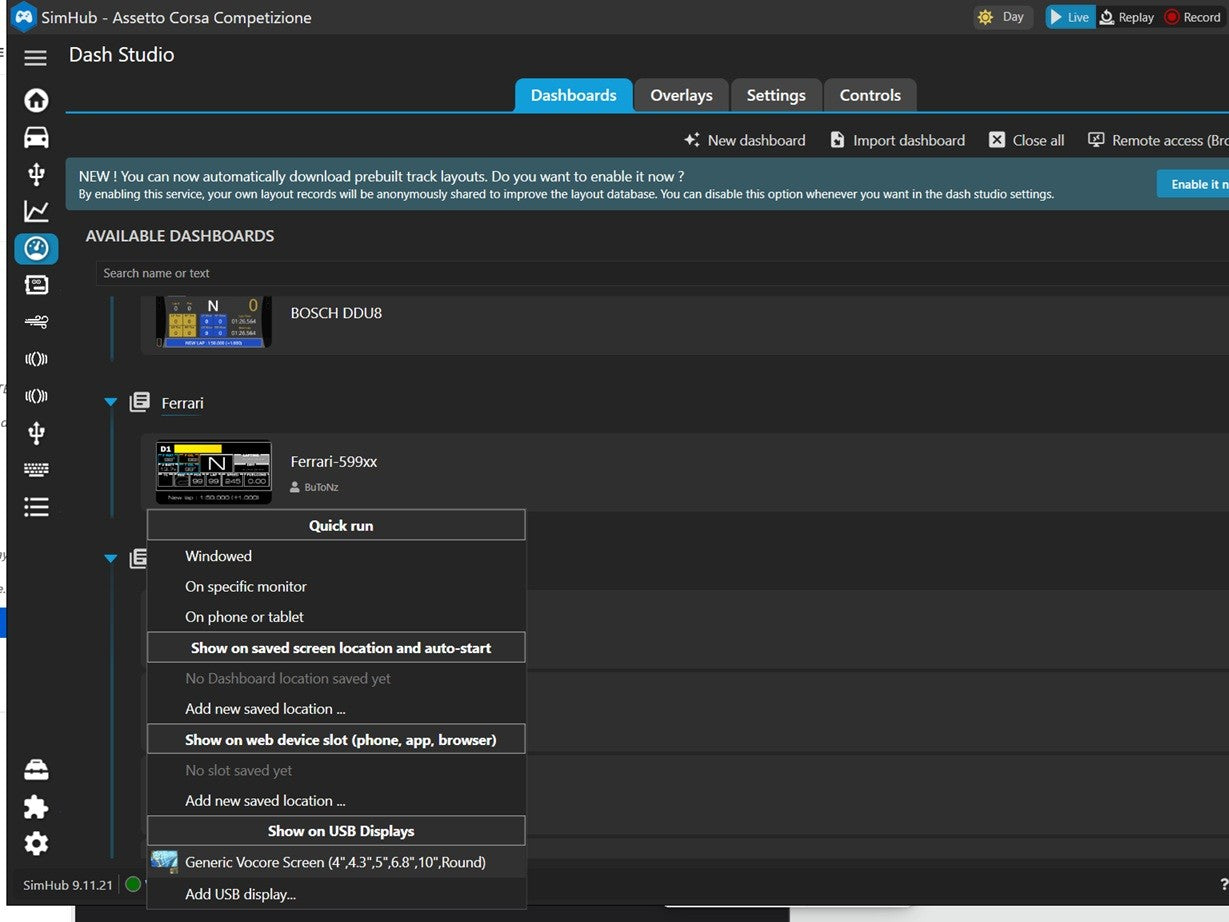

  • On the left-side tab named Dash Studio, you will see all of the pre-installed dashboards supplied with SimHub. Click on a dashboard, look under Show on USB displays, and select your VoCore display. The dashboard will now appear on your screen.
  • Alternatively, you can apply a dashboard within the VoCore screen section of the Devices tab by using the Main Dashboard drop-down menu.

ADDITIONAL INFORMATION

  • SimHub remembers your configuration. When you exit SimHub or restart your PC, SimHub will automatically reload your exact settings back onto your VoCore display. These saved settings include screen orientation, brightness, dashboard selection, and refresh rates.
  • You can add multiple VoCore devices and run them completely independently of one another. This allows you to display separate dashboards on each VoCore screen and customize individual settings, such as orientation.
  • Each VoCore display has a unique serial number detected by SimHub. If your dashboards and settings apply to the wrong screen upon restarting, you can fix this in the Devices tab. Under your VoCore device settings, check the box for Connect to specific device and use the drop-down menu to select the exact display you want to target. SimHub will then remember this assignment, even if you change USB ports, hubs, or cables.
  • SimHub supports third-party dashboards, offering hundreds of free and paid options available for download. To add one after downloading it, simply click the Dash Studio tab and select Import Dashboard. You can even build your own custom dashboard directly within SimHub!

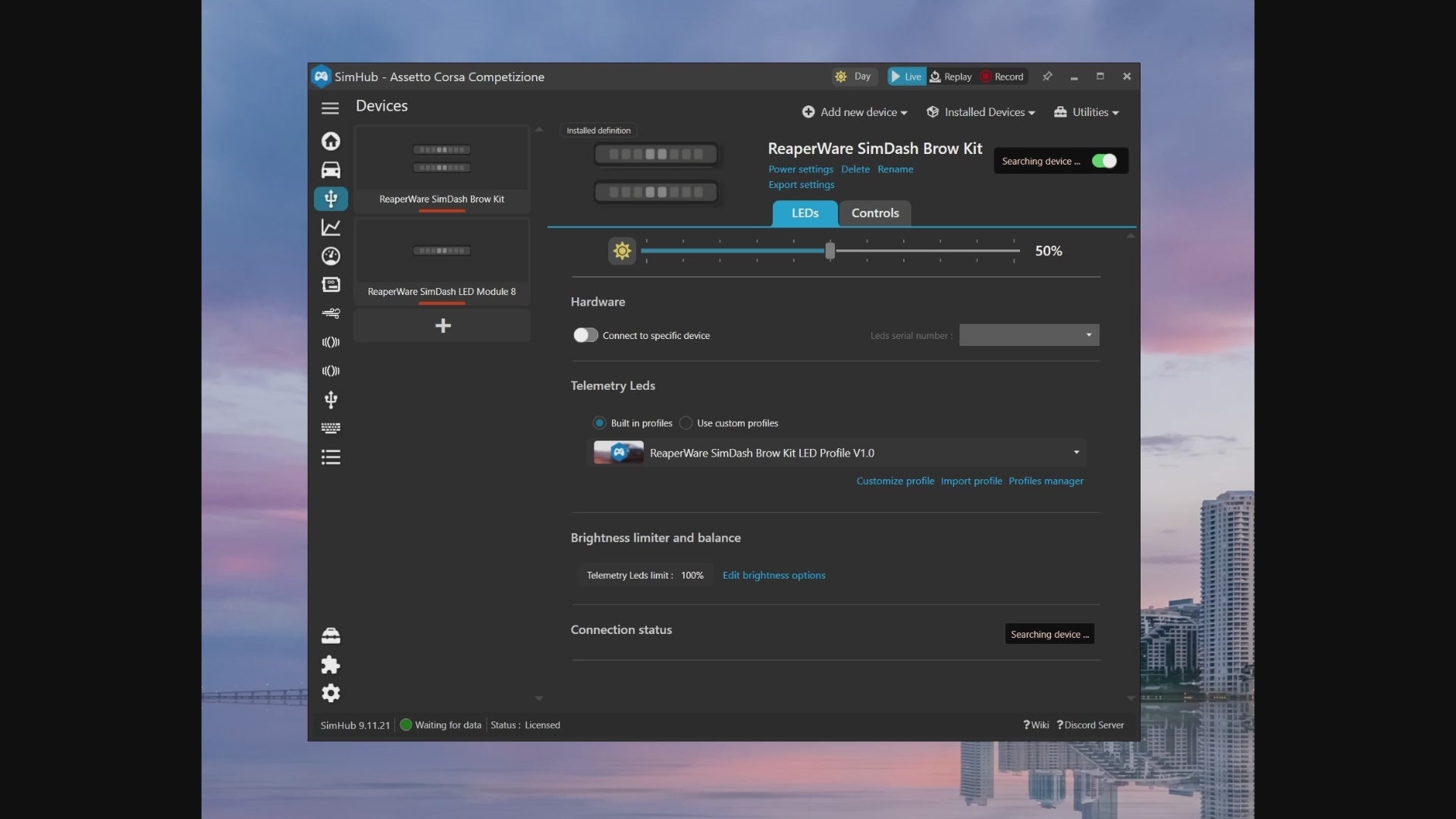

ADDING A VOCORE DEVICE IN SIMHUB VIDEO
